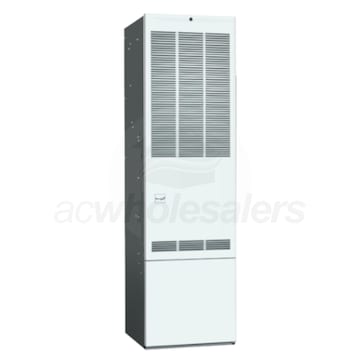

Revolv 80% AFUE 77000 BTU Downflow Multi Speed Mobile Home Gas Furnace

Model: MG1E-077B Item Number: 101037
Ask a Question
Revolv MG1E-077B
PREVIOUS
NEXT
Revolv MG1E-077B
Enlarge Image
Our Price: $999.00

Ships in 7-14 Business Days
Revolv 80% AFUE 77000 BTU Downflow Multi Speed Mobile Home Gas Furnace
Revolv 80% AFUE 77000 BTU Downflow Multi Speed Mobile Home Gas Furnace Model: MG1E-077B Item Number: 101037
$999.00
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More *This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More *This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Truck Icon
Low Price Guarantee Learn More Shop with Confidence knowing you have the Right system at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know and we will match the price of any online competitor.

Simply call our sales or customer service department at 866-631-6389 and one of our representatives will be happy to price match the product(s) for you.
Specification Highlights
    Condition
    New Learn More This product is new and has never been used. It's in its original packaging, which has not been opened.
    Type
    Gas Furnace
    Product Line
    MG1E
    Fuel Type
    Natural Gas
View More
Heating Capacity (BTU/Hr)
Select Attribute
Includes Coil Cabinet
Select Attribute
Features
View More

Features

Overview for Revolv MG1E-077B

Revolv is dedicated to bringing efficient comfort to the manufactured and mobile home market. The MG1E is a downflow gas furnace capable of providing 62,000 BTU of heating at 80% AFUE. Designed for easy installation in a variety of manufactured and modular homes, the MG1E features a small footprint and is HUD-compliant. The MG1E includes an efficient ECM blower motor, allowing for powerful airflow at the fraction of the energy cost as a traditional PSC motor. Featuring a factory-installed coil box, the MG1E is ready to pair with an AC unit out of the box. With durable construction and a dependable warranty, the Revolv MG1E is a reliable solution for your manufactured home heating needs.
Specifications
View More

Specifications

General Information
Type
Gas Furnace
Product Line
MG1E
Fuel Type Learn More To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Learn More Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging Learn More Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Single Stage
Blower Motor
ECM Multi-Speed
Configuration Learn More Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow
Gas Conversion Kit
Included
Installation Available
No
UPC
663132389094
Performance
AFUE Learn More AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
80 %
Heating BTU
77000
High Fire Input
77000 BTU
High Fire Output
62000 BTU
Maximum Air Flow
1573 CFM
Ultra Low NOx Emissions Learn More NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
No
Low NOx Emissions Learn More NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
No
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Gas Connection Size
1/2 Inch
Cabinet Width
19 7/8 Inches
Product Height
76 Inches
Product Width
19 7/8 Inches
Product Depth
23 3/4 Inches
Shipping Weight
171 Pounds
Certifications
AHRI Certified
Yes
AHRI Reference Number
204235988
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
