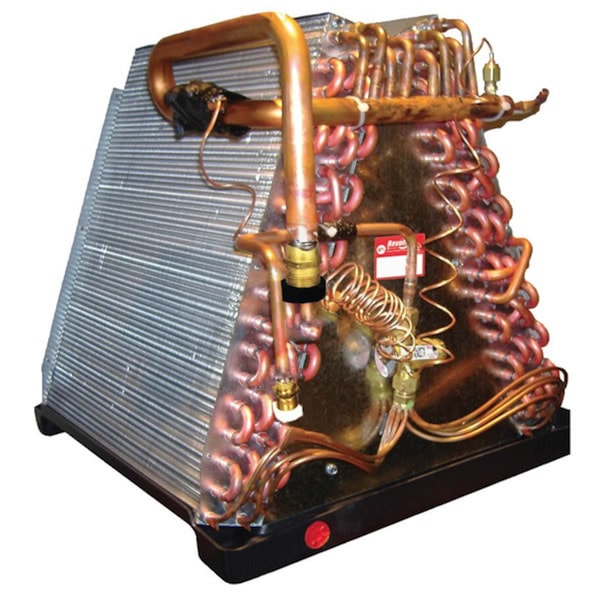

Revolv AccuCharge® - 4.0 Ton - Downflow A-Coil - Uncased

Model: 187848M4A Item Number: 82980
Revolv 187848M4A
Revolv 187848M4A
Enlarge Image
Not For Individual Sale
Specification Highlights
    New Learn More
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    40 Pounds Learn More
    40 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Evaporator Coil
Cooling Capacity (Tonnage)
Select Attribute
Connection Type
Select Attribute
View More


Overview for Revolv 187848M4A

No need to waste any more time calculating the correct refrigerant charge in your HVAC system. The AccuCharge® coils are designed to work with AccuCharge® condensers. They have a factory precise refrigerant charge and FitRight® fittings that provide an easy installation. The 187848M4A is compatible with not only air conditioners, but heat pumps as well. AccuCharge® coils are designed to be the coil of choice for new and existing upflow/downflow mobile home HVAC systems.
  • AccuCharge® with FitRight® Fittings
  • All AccuCharge® units come with a factory precise refrigerant charge and FitRight® fittings that provide an easy installation. The combination of the two are engineered for superior efficiency and reliability.
  • Factory Installed TXV Valve
  • The AccuCharge® coils come installed with a thermal expansion valve (TXV) that helps control the amount of refrigerant flow into the evaporator.
  • Mounted TXV Sensor Bulb
  • The TXV sensor bulb is what senses how much refrigerant to flow through the coil. In the AccuCharge® coils, it is mounted properly on the suction line for precise readings.
  • Failure Prevention
  • AccuCharge® coils have features to prevent premature failure of your coil. It has a built-in strainer to prevent debris from entering the coil. It also has a dry-type pan so that it doesn't hold standing water.
  • Installation Materials Included
  • The 187848M4A comes with a kit including a drain hose, fittings, and furnace cover plates for gas and oil furnaces.
  • Specifications
    View More


    Product Category
    Evaporator Coil
    General Information
    Evaporator Coil
    Product Category
    Evaporator Coil
    Refrigerant Type
    A Coil
    Configuration Learn More
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Capacity Learn More
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    4.0 Tons
    Cooling BTU
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    19 1/2 Inches
    Product Width
    18 Inches
    Product Depth
    19 5/8 Inches
    Product Weight
    40 Pounds
    Shipping Weight
    50 Pounds
    ETL Listed
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
