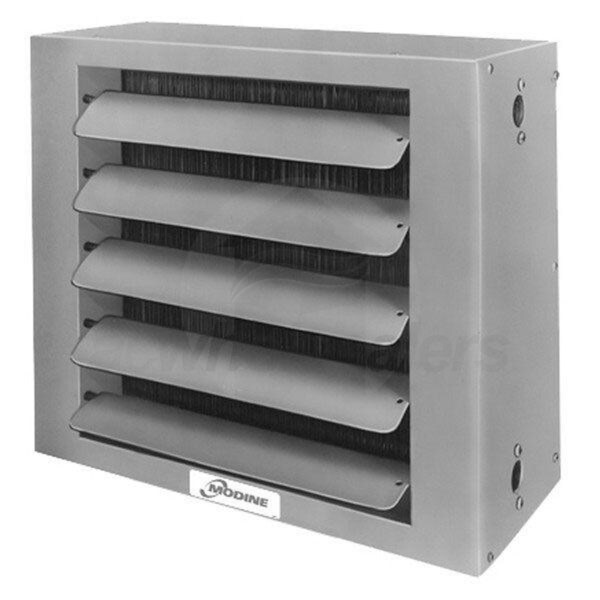

Modine HC 121,000 BTU Hot Water/Steam Unit Heater Horizontal Copper Side Connections

Model: HC121S01 Item Number: 48318
Modine HC121S01
PREVIOUS
NEXT
Modine HC121S01
Enlarge Image
Originally $1,351.00, you save 5%
Our Price: $1,283.45
synchrony card icon
$214 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 6-8 Weeks
Modine HC 121,000 BTU Hot Water/Steam Unit Heater Horizontal Copper Side Connections
Modine HC 121,000 BTU Hot Water/Steam Unit Heater Horizontal Copper Side Connections Model: HC121S01 Item Number: 48318
$1,283.45
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    76 Pounds Learn More
    76 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Unit Heater
    UPC
    046629034873
Input Capacity (BTU/h)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Modine HC121S01

Overview for Modine HC121S01Modine offers the best solution for heating, ventilating, and air conditioning. From garage heaters to commercial office space Modine has an answer to ensure your space is comfortable no matter the weather. Modine offers brands such as the Hot Dawg garage heaters, Effinity high efficiency unit heaters and the Atherion packaged ventilation systems that provide the comfort of innovative, reliable, and efficient.
  • Side Connections
  • The HC121 comes equipped with side supply and return connections, permitting the unit to be rotated 360° without piping changes. This also allows the unit heater to be installed in very low clearance areas with little effort.
  • Two Piece Casing
  • A two piece casing is used with the HC121, allowing for incredibly easy access to the coil in case maintenance is required.
  • Tapped Suspension Holes
  • The HC121 comes with pre-drilled tapped holes for suspension by threaded rod. This reduces installation time for your contractor, saving you money on installation.
  • Thermal Shock Resistant
  • The serpentine copper tube coil is very resistant to thermal shock even at high steam temperatures. This prevents undesired warping of the coil itself, as well as decreasing necessary maintenance.
  • Smart Coil Layout
  • The layout of the coil does not include coil headers. This eliminates potential leaks and maintenance without increasing the overall size of the unit.
  • Baked-On Polyester Paint
  • The HC121 features a neutral colored baked-on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
  • Modine Installation
  • Installation by a professional installer is required by the manufacturer.
  • Product Note
    This product is available in multiple power configurations, including:
    • 230V/1Ph/60Hz
    • 208V/3Ph/60Hz
    • 230V/3Ph/60Hz
    • 460V/3Ph/60Hz
    • 575V/3Ph/60Hz
    For ordering information, call our sales department at (866) 554-HEAT (4328).
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Unit Heater
    UPC
    046629034873
    General Information
    Product Line
    HC
    Product Category
    Unit Heater
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Steam/Hot Water
    Heat Exchanger Material
    Copper
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Hydronic
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    Performance
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    121000 BTU
    Air Throw
    25 Feet
    Maximum Air Flow
    1775 CFM
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Supply Connection
    3/4 Inch
    Return Connection
    3/4 Inch
    Product Height
    22 1/2 Inches
    Product Width
    25 1/2 Inches
    Product Depth
    16 1/4 Inches
    Product Weight
    76 Pounds
    Shipping Weight
    86 Pounds
    Certifications
    Country of Origin
    United States
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
