LG LV241HV4 24,000 BTU 19.5 SEER Vertical Ducted Heat Pump System

Model: LV241HV4 Item Number: 102721
Ask a Question
LG LV241HV4
PREVIOUS
NEXT
LG LV241HV4
LG LV241HV4
LG LV241HV4
LG LV241HV4
Enlarge Image
LG LV241HV4
LG LV241HV4
LG LV241HV4
LG LV241HV4
View All
Originally $3,907.00, you save 5%
Our Price: $3,711.65
synchrony card icon
$65 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Ships in 7-14 Business Days
LG LV241HV4 24,000 BTU 19.5 SEER Vertical Ducted Heat Pump System
LG LV241HV4 24,000 BTU 19.5 SEER Vertical Ducted Heat Pump System Model: LV241HV4 Item Number: 102721
$3,711.65
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    262.43 Pounds Learn More
    Type
    Ducted Vertical Air Handler
    Product Line
    Multi F
View More
Bundle Includes 4 items
  • product image
    (1) LG - 24k BTU - Four-Way Ceiling Cassette Outdoor Condenser - Single Zone Only (LUU249HV)
  • product image
    (1) LG 24,000 BTU Ducted Vertical Air Conditioner Air Handlers (LVN241HV4)
  • product image

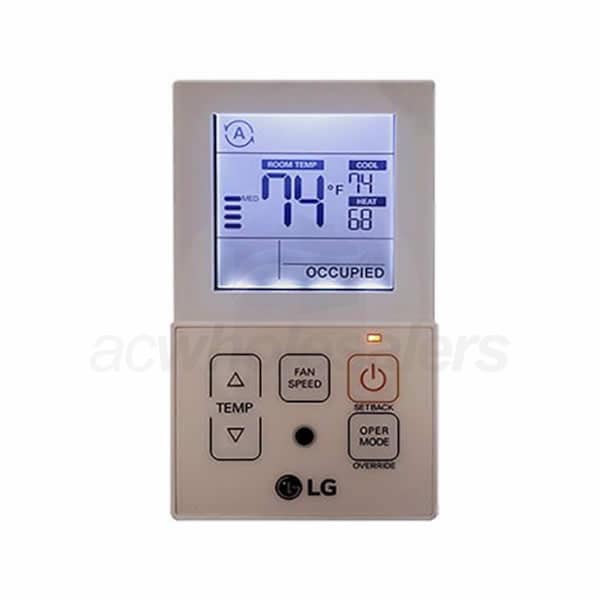

    (1) LG Wired Simple Remote Controller (PREMTC00U)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for LG LV241HV4

LG's devotion to providing efficient heating and cooling solutions can be seen across the LG product line. The LV241HV4 shows that same devotion. LG's air handling system is designed to provide powerful heating and cooling and can be installed with nearly any pre-existing ducting run. Capable of managing high air speeds and volumes effortlessly, the LV241HV4 is an impressive solution to your home's heating and cooling needs. A wireless remote is conveniently included to make controlling your air handling system a breeze.
Product Note
LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Bundle Includes 4 items
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
Bundle Overview
LUU249HV Specifications
LVN241HV4 Specifications
PREMTC00U Specifications
PZCWRC1 Specifications
General Information
Type
Ducted Vertical Air Handler
Product Line
Multi F
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
24
Outdoor Unit Size
24000 BTU
DOE Regional Compliance Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Heating Capacity
27000 BTU
SEER Learn More
19.5
EER Learn More
12.0
HSPF Learn More
11.0
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-4 F
Minimum Outdoor Temperature for Cooling
5 F
Dimensions
Product Weight
262.43 Pounds
Shipping Weight
266.43 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
203161352
General Information
Type
Outdoor Condenser
Product Line
Four-Way Ceiling Cassette
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
24000
Maximum Sound Level Learn More
52 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
0 F
Minimum Outdoor Temperature for Cooling
5 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
30 Amps
Dimensions
Maximum Line Length
164 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
32 41/48 Inches
Product Width
37 5/12 Inches
Product Depth
13 Inches
Product Weight
133 Pounds
Shipping Weight
146 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
General Information
Type
Ducted Vertical Air Handler
Product Line
Multi F
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
24
Installation Location
Indoor
Outdoor Unit Size
24000 BTU
DOE Regional Compliance Learn More
Nationwide
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Heating Capacity
27000 BTU
SEER Learn More
18.0
EER Learn More
12.5
HSPF Learn More
10.0
Maximum Air Flow
710 CFM
Minimum Air Flow
480 CFM
Minimum Sound Level
30 dB
Maximum Sound Level Learn More
36 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-4 F
Minimum Outdoor Temperature for Cooling
5 F
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Product Height
48 3/4 Inches
Product Depth
21 1/4 Inches
Product Length
18 Inches
Product Weight
123.5 Pounds
Shipping Weight
135.1 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
General Information
Type
Mini Split Controller
Maximum Number of Zones
16
Power Source
Hard-Wired
Dimensions
Product Height
4 3/4 Inches
Product Width
5/8 Inch
Product Length
2 3/4 Inches
Product Weight
0.18 Pounds
General Information
Type

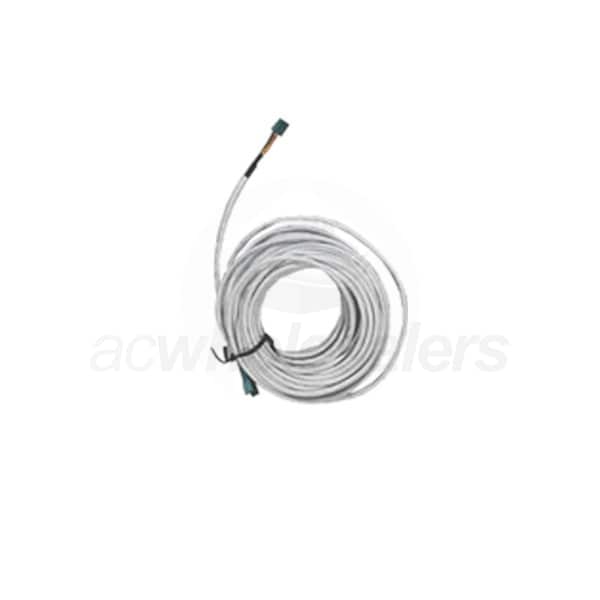

Wire Kit
Dimensions
Product Length
33 Feet
Product Weight
0.25 Pounds
Certifications
Country of Origin
Korea
