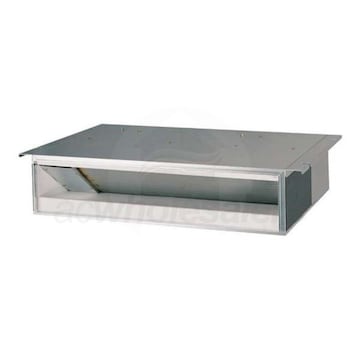

LG 18,000 BTU Low Static Ducted Heat Pump Air Handler
NewNewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
48.5 Pounds48.5 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Product Category
Mini Split System Components
UPC
048231387286
View More
+Share This Product
Recommended Accessories
Required AccessoriesAdd All Required
Installation Accessories
Features
Features
Overview for LG LDN187HV4
Please Note: Due to the limited availability of this model, these products will be sold in systems only. Should you have any questions please contact our sales center at 866-631-6389 option 1 for alternate options.
LG's devotion to providing efficient ductless solutions can be seen across the Multi F line of indoor units. The LDN187HV4 is a mini split indoor unit designed for installation is short-run ducting with low static pressures. Concealed duct indoor units mean that you can add mini split zones with no visible indoor units. With the LDN187HV4, a small air register is the only clue that a mini split is providing effective heating and cooling to your space.
Quiet Design
Quiet Design
The LDN187HV4 can operate at volumes as low as 31 dB thanks to its advanced fan motor. The brushless direct current motor reduces electrical and mechanical sound while providing powerful air movement.
The LDN187HV4 can operate at volumes as low as 31 dB thanks to its advanced fan motor. The brushless direct current motor reduces electrical and mechanical sound while providing powerful air movement.
Automated Operation
Automated Operation
Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
Sleep Mode
Sleep Mode
With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
Condensate Protection
Condensate Protection
Condensate overflow can damage your indoor unit and your home. An internal condensate pump with 27.5" of lift protects the LDN187HV4 through reliable, effective condensate removal.
Condensate overflow can damage your indoor unit and your home. An internal condensate pump with 27.5" of lift protects the LDN187HV4 through reliable, effective condensate removal.
Dehumidify
Dehumidify
LG's multi-zone indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
LG's multi-zone indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
Improved Air Quality
Improved Air Quality
The LDN187HV4 features an anti-fungal filter to keep your air clean. This filter captures contaminants like dust and bacteria, and it is washable to ensure long term air quality.
The LDN187HV4 features an anti-fungal filter to keep your air clean. This filter captures contaminants like dust and bacteria, and it is washable to ensure long term air quality.
Hot Start
Hot Start
When the hot start function is enabled, the LDN187HV4's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
When the hot start function is enabled, the LDN187HV4's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
Product Includes
Product Includes
(1) LG LDN187HV4 Concealed Duct Mini Split Indoor Unit
(1) LG LDN187HV4 Concealed Duct Mini Split Indoor Unit
This product requires a compatible LG mini split outdoor condenser and the following accessories for indoor unit installation:
Remote Control Cable - The PZCWRC1 remote control cable is required for each individual concealed duct unit in your system.
Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
Specifications
Specifications
Overview
Product Category
Mini Split System Components
UPC
048231387286
General Information
Type
Concealed Duct
Product Line
Multi F
Product Sub-line
Low-Static Ducted
Product Category
Mini Split System Components
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Installation Location
Indoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Maximum Air Flow
530 CFM
Minimum Air Flow
353 CFM
Minimum Sound Level
31 dB
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
36 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
7 23/48 Inches
Product Width
38 17/48 Inches
Product Depth
27 9/16 Inches
Product Weight
48.5 Pounds
Shipping Weight
57.3 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
