Goodman - 1.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + 2-Stage Furnace Kit - 14.0 SEER - 96% AFUE - For Upflow Installation

Model: GSX1318GMEC96080U Item Number: 75726
Ask a Question
Goodman GSX1318GMEC96080U
PREVIOUS
NEXT
Goodman GSX1318GMEC96080U
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Watch Video
Goodman GSX1318GMEC96080U
Goodman GSX1318GMEC96080U
Goodman GSX1318GMEC96080U
Goodman GSX1318GMEC96080U
Goodman GSX1318GMEC96080U
Goodman GSX1318GMEC96080U
Goodman GSX1318GMEC96080U
Goodman GSX1318GMEC96080U
Goodman GSX1318GMEC96080U
Enlarge Image
Goodman GSX1318GMEC96080U
Goodman GSX1318GMEC96080U
Watch Video
Goodman GSX1318GMEC96080U
Watch Video
Goodman GSX1318GMEC96080U
Watch Video
Goodman GSX1318GMEC96080U
Watch Video
Goodman GSX1318GMEC96080U
Watch Video
Goodman GSX1318GMEC96080U
Watch Video
Goodman GSX1318GMEC96080U
Goodman GSX1318GMEC96080U
Goodman GSX1318GMEC96080U
Goodman GSX1318GMEC96080U
Goodman GSX1318GMEC96080U
Goodman GSX1318GMEC96080U
Goodman GSX1318GMEC96080U
Goodman GSX1318GMEC96080U
Goodman GSX1318GMEC96080U
View All
Originally $2,828.00
Add to Cart for Lower Price
synchrony card icon
$405 / Month
Suggested monthly payments with 6 month financing.
Ships in 4-6 Weeks
Goodman - 1.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + 2-Stage Furnace Kit - 14.0 SEER - 96% AFUE - For Upflow Installation
Goodman - 1.5 Ton Cooling - 80k BTU/Hr Heating - Air Conditioner + 2-Stage Furnace Kit - 14.0 SEER - 96% AFUE - For Upflow Installation Model: GSX1318GMEC96080U Item Number: 75726
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    255 Pounds Learn More
    Operating Mode
    Heating and Cooling
    Modulating/Staging
    Two Stage
View More
Bundle Includes 3 items
  • product image

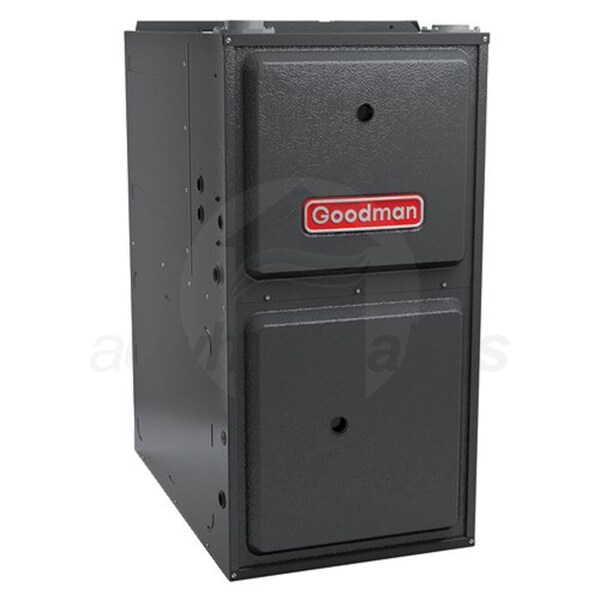

    (1) Goodman 96% AFUE 80,000 BTU 2 Stage Upflow Gas Furnace Heater (GMEC960803BN)
  • product image
    (1) Goodman 1.5 Ton 13 SEER Air Conditioner Condenser w/ R410A Refrigerant (GSX130181)
  • product image
    (1) Goodman 1.5 to 2 Ton 17.5 in. Wide Air Conditioner Cased Coil (CAPF1824B6)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Goodman GSX1318GMEC96080U

A Goodman central air and furnace kit is the perfect way to update your home's HVAC system. This kit contains a GSX13 air conditioner, a GMEC96 furnace, and a cased evaporator coil. Living in the north, you often face cold winters and mild summers. The GSX13 provides you with the cooling you'll need but the GMEC96 is why you chose this kit. It provides you with efficient two-stage heating for those long cold winters. Each of these components is designed with a focus on ease-of-installation and durability to provide you with upfront and long-term value. If you're looking for a complete comfort solution backed by superior craftsmanship, the Goodman GSX1318GMEC96080U air conditioner and furnace kit fits the bill perfectly.
  • The manufacturer model number(s): Goodman GSX130181 GMEC960803BN CAPF1824B6
  • AHRI Reference Number: 7365239 * *May change based on the Manufacturer revision
  • Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. | The US Department of Energy regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions. We are required to abide by these regulations when selling products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please call or email us for help.
    Bundle Includes 3 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    GMEC960803BN Specifications
    GSX130181 Specifications
    CAPF1824B6 Specifications
    General Information
    Operating Mode Learn More
    Heating and Cooling
    Modulating/Staging Learn More
    Two Stage
    Blower Motor
    ECM Multi-Speed
    Coil Width
    17.5 Inches
    Configuration Learn More
    Upflow
    DOE Regional Compliance Learn More
    Nationwide (Except CA, TX and UT)
    Performance
    AFUE Learn More
    96 %
    Capacity Learn More
    1.5 Tons
    Cooling Capacity
    17800 BTU
    Nominal Cooling Capacity
    18000 BTU
    Heating BTU
    80000
    SEER Learn More
    14.0
    EER Learn More
    12.0
    Maximum Air Flow
    575 CFM
    Dimensions
    Product Weight
    255 Pounds
    Shipping Weight
    270 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    7365239
    General Information
    Type
    Gas Furnace
    Product Line
    GMEC96
    Fuel Type Learn More
    Natural Gas
    Vent Type Learn More
    Direct Vent
    Modulating/Staging Learn More
    Two Stage
    Blower Motor
    ECM Multi-Speed
    Configuration Learn More
    Upflow/Horizontal
    Gas Conversion Kit
    Available
    Installation Available
    Yes
    Performance
    AFUE Learn More
    96 %
    Heating BTU
    80000
    High Fire Input
    80000 BTU
    High Fire Output
    76800 BTU
    Low Fire Input
    56000 BTU
    Low Fire Output
    53760 BTU
    Maximum Air Flow
    1200 CFM
    Ultra Low NOx Emissions Learn More
    No
    Low NOx Emissions Learn More
    Yes
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    8 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Flue Connection Size
    2 or 3 Inches
    Cabinet Width
    17 1/2 Inches
    Product Height
    34 1/2 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    28 3/4 Inches
    Product Weight
    118 Pounds
    Shipping Weight
    118 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    7423788
    Warranty Information
    Unit Replacement Warranty
    10 Years
    Parts Warranty Learn More
    5 Years
    Heat Exchanger Warranty
    20 Years
    General Information
    Type
    Condenser
    Product Line
    GSX13
    Operating Mode Learn More
    Cooling
    Refrigerant Type
    R-410a
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Single
    DOE Regional Compliance Learn More
    North
    Installation Available
    Yes
    Performance
    Capacity Learn More
    1.5 Tons
    Cooling BTU
    18000
    Cooling Capacity
    18000 BTU
    SEER Learn More
    13.0
    EER Learn More
    11.0
    Maximum Sound Level Learn More
    75 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    9 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    25 3/4 Inches
    Product Width
    23 Inches
    Product Depth
    23 Inches
    Product Weight
    102 Pounds
    Shipping Weight
    117 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Limited* 10 Years Years
    General Information
    Type
    Evaporator Coil
    Product Line
    CAPF
    Refrigerant Type
    R-410A
    Casing
    Cased
    Style
    A Coil
    Configuration Learn More
    Upflow/Downflow
    Installation Available
    Yes
    Performance
    Capacity Learn More
    1.5 - 2.0 Tons
    Cooling BTU
    24000
    Nominal Minimum Cooling Capacity
    18000 BTU
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    17 1/2 Inches
    Product Height
    18 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    21 Inches
    Product Weight
    35 Pounds
    Shipping Weight
    45 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    5 Years
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Product Q&A
    View More

    Product Q&A

    Be the first to ask a question.

    Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

    Manuals
