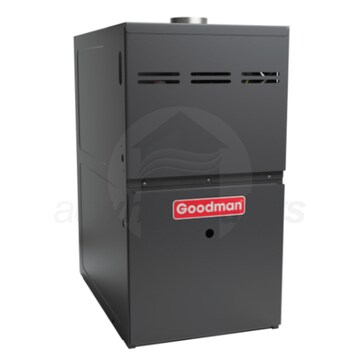

Goodman 80% AFUE 60,000 BTU 2 Stage Upflow Variable Speed Gas Furnace

Model: GMVC800603BX Item Number: 100099
Ask a Question
Goodman GMVC800603BX
PREVIOUS
NEXT
Goodman GMVC800603BX
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    Type
    Gas Furnace
    Product Line
    GMVC80
    Fuel Type
    Natural Gas
View More
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Goodman GMVC800603BX

Goodman's GMVC80 furnaces feature high-quality construction and efficient operation at a great value. The GMVC80 is equipped with an advanced variable-speed blower motor, which scales circulation to the specific demands of your application in real-time. The GMVC80 was designed with multiple options for the unit's gas, electric, and venting connections and orientation, ensuring a painless and quick installation. It even features a self-diagnosing control board that makes maintenance a breeze. If you're looking for consistent comfort and incredible efficiency from a two-stage furnace, it's tough to beat Goodman's GMVC80.
  • Product Features
  • Low constant fan speed circulates air throughout the home
  • Furnace control board with self-diagnostics
  • SureStart Silicon Nitride igniter designed for long igniter life
  • Efficient and quiet variable-speed ECM circulator motor
  • ComfortNet Communicating System compatible
  • Two-stage gas valve
  • Our SKU number(s): GMVC800603BX
  • The manufacturer model number(s): GMVC800603BX
  • Specifications
    View More

    Specifications

    General Information
    Type
    Gas Furnace
    Product Line
    GMVC80
    Fuel Type Learn More
    Natural Gas
    Vent Type Learn More
    Chimney Vent
    Modulating/Staging Learn More
    Two Stage
    Blower Motor
    ECM Variable-Speed
    Configuration Learn More
    Upflow/Horizontal
    Gas Conversion Kit
    Available
    UPC
    663051591707
    Performance
    AFUE Learn More
    80 %
    Heating BTU
    60000
    High Fire Input
    60000 BTU
    High Fire Output
    48000 BTU
    Low Fire Input
    42000 BTU
    Low Fire Output
    33600 BTU
    Maximum Air Flow
    1200 CFM
    Ultra Low NOx Emissions Learn More
    No
    Low NOx Emissions Learn More
    Yes
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    7.75 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Flue Connection Size
    4 Inches
    Cabinet Width
    17 1/2 Inches
    Product Height
    33 1/2 Inches
    Product Width
    17 1/2 Inches
    Product Depth
    28 Inches
    Shipping Weight
    105 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    202327702
    Warranty Information
    Unit Replacement Warranty
    10 Years
    Parts Warranty Show ACW Parts Warranty Learn More
    10 Years
    Heat Exchanger Warranty
    Lifetime Years
