Fujitsu 21,000 BTU 20 SEER Floor Dual Zone Heat Pump System 9+12

Model: F2L24F09120000 Item Number: 85039
Ask a Question
Fujitsu F2L24F09120000
PREVIOUS
NEXT
Fujitsu F2L24F09120000
Fujitsu F2L24F09120000
Enlarge Image
Fujitsu F2L24F09120000
Fujitsu F2L24F09120000
View All
Our Price: $4,135.85
$52 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Ships in 7-14 Business Days
Fujitsu 21,000 BTU 20 SEER Floor Dual Zone Heat Pump System 9+12
Fujitsu 21,000 BTU 20 SEER Floor Dual Zone Heat Pump System 9+12 Model: F2L24F09120000 Item Number: 85039
$4,135.85
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    208 Pounds Learn More
    Type
    Floor Mounted
    Product Line
    Halcyon HFI XLTH
View More

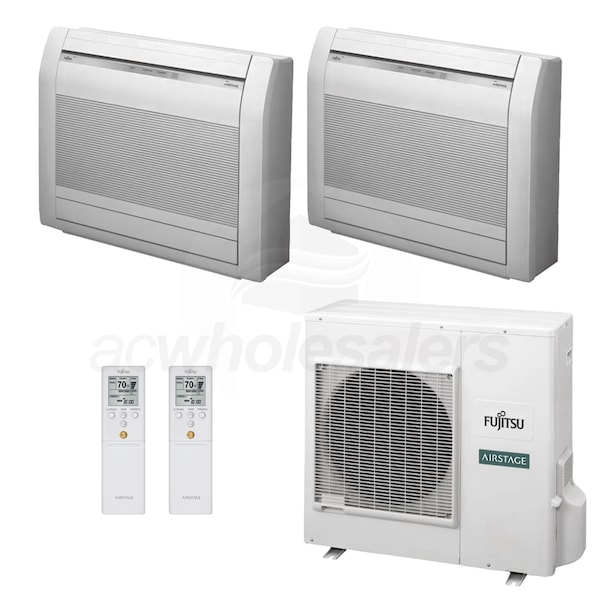

Bundle Includes 3 items
  • (1) Fujitsu 22,000 BTU 20 SEER Ductless Multizone Heat Pump Condenser (AOU24RLXFZH)
  • (1) Fujitsu 12,000 BTU Ductless Floor Mounted Heat Pump Air Handler (AGU12RLF)
  • (1) Fujitsu 9,000 BTU Ductless Floor Mounted Heat Pump Air Handler (AGU9RLF)
View Full Bundle
Features & Bundle Details
View More

Features & Bundle Details

Overview for Fujitsu F2L24F09120000

Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the F2L24F09120000 floor standing mini split system. If you are looking to provide heating and cooling for multiple zones, or supplement existing heating and air conditioning equipment, the Halcyon HFI mini split system is a reliable and efficient choice. This floor standing system is perfect for zoned comfort in areas where wall and ceiling space are too limited for mounted units. With a wide range of operating modes, this system can be customized to suit any of your comfort needs.
  • Product Features
  • 24 hr. Timer
  • Auto Restart
  • Wireless Remote Controller
  • Auto/Cool/Dry/Fan/Heat/Modes
  • Powerful Mode
  • Cold Prevention
  • Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Cable - This durable, insulated cable provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
    Bundle Includes 3 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overview
    Bundle Overview
    AOU24RLXFZH Specifications
    AGU12RLF Specifications
    AGU9RLF Specifications
    General Information
    Type
    Floor Mounted
    Product Line
    Halcyon HFI XLTH
    Operating Mode Learn More
    Heating and Cooling
    Number of Zones Learn More
    2
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    9 + 12
    Base Pan Heater Included
    Yes
    Outdoor Unit Size
    24000 BTU
    DOE Regional Compliance Learn More
    Nationwide
    Performance
    Cooling Capacity
    21000 BTU
    Heating Capacity
    23400 BTU
    SEER Learn More
    20.0
    EER Learn More
    13.3
    HSPF Learn More
    10.3
    Cooling Power Input
    1660 Watts
    Heating Power Input
    2010 Watts
    Minimum Operating Temperature
    5 F
    Maximum Operating Temperature
    115 F
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    -15 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Dimensions
    Product Weight
    208 Pounds
    Shipping Weight
    208 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    8033586
    General Information
    Type
    Outdoor Condenser
    Product Line
    Halcyon HFI XLTH
    Operating Mode Learn More
    Heating and Cooling
    Maximum Number of Zones
    3
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Base Pan Heater Included
    Yes
    Performance
    Cooling BTU
    24000
    Maximum Sound Level Learn More
    52 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    -15 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    30 Amps
    Dimensions
    Maximum Line Length
    229 Feet
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    1/2 Inch
    Product Height
    32 11/16 Inches
    Product Width
    35 7/16 Inches
    Product Depth
    13 Inches
    Product Weight
    146 Pounds
    Shipping Height
    38 3/16 Inches
    Shipping Width
    41 5/16 Inches
    Shipping Depth
    17 1/2 Inches
    Shipping Weight
    161 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Floor Mounted
    Product Line
    Halcyon HFI
    Operating Mode Learn More
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    12
    Installation Location
    Indoor
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Maximum Air Flow
    353 CFM
    Minimum Air Flow
    159 CFM
    Minimum Sound Level
    22 dB
    Maximum Sound Level Learn More
    42 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    23 5/8 Inches
    Product Width
    29 1/8 Inches
    Product Depth
    7 7/8 Inches
    Product Weight
    31 Pounds
    Shipping Height
    27 9/16 Inches
    Shipping Width
    32 5/16 Inches
    Shipping Depth
    12 3/16 Inches
    Shipping Weight
    37 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    5 Years
    General Information
    Type
    Floor Mounted
    Product Line
    Halcyon HFI
    Operating Mode Learn More
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    9
    Installation Location
    Indoor
    Performance
    Cooling BTU
    9000
    Cooling Capacity
    9000 BTU
    Maximum Air Flow
    312 CFM
    Minimum Air Flow
    159 CFM
    Minimum Sound Level
    22 dB
    Maximum Sound Level Learn More
    39 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    23 5/8 Inches
    Product Width
    29 1/8 Inches
    Product Depth
    7 7/8 Inches
    Product Weight
    31 Pounds
    Shipping Height
    27 9/16 Inches
    Shipping Width
    32 5/16 Inches
    Shipping Depth
    12 3/16 Inches
    Shipping Weight
    37 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    5 Years
