Buderus SM 103 Gallons Indirect Fired Water Heater Thermoglaze Lined

Model: SM100/5 Item Number: 37642

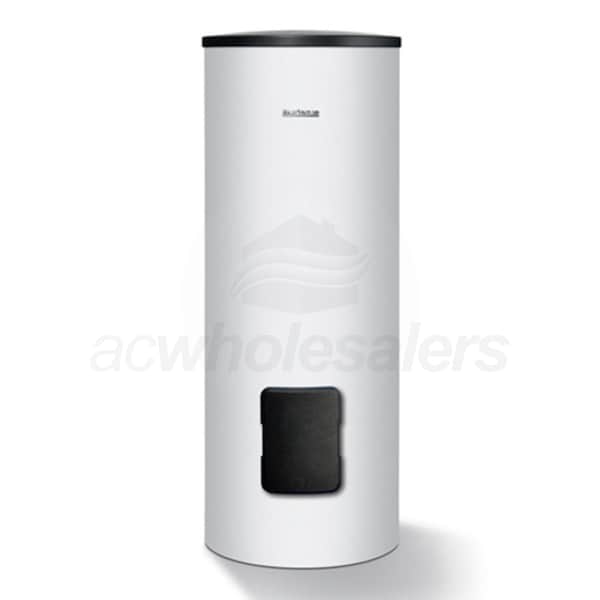

Buderus SM100/5
PREVIOUS
NEXT
Buderus SM100/5
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    298 Pounds Learn More
    298 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Water Heater - Solar
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Buderus SM100/5

Buderus dual coil indirect fired hot water heaters are designed to bring together a solar and traditional hydronic heating system. The dual internal coils can accept heat from both boiler and solar panel, while the patented thermoglaze interior keeps internal corrosion at bay. An included magnesium anode rod extends the service life of the water heater by a factor of years by further reducing corrosion. Screw-on feet allow for easy leveling of the tank even on slightly inclined surfaces.
  • Thermoglaze Enamel Interior
  • The Buderus SM100/5W indirect fired water heater is coated internally with Buderus' Thermoglaze enamel, protecting the inside of the tank from corrosion.
  • Included Anode Rod
  • The water heater includes a sacrificial, replaceable anode rod, significantly reducing pipe corrosion over time.
  • Dual Internal Coils
  • The SM series water heaters have two internal heating coils available for use, one for classic domestic hydronic heating from boilers and one for solar heat sources.
  • Included Leveling Legs
  • Included with the water heater are a set of adjustable legs, allowing the water heater to remain level even on inclined surfaces.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Water Heater - Solar
    General Information
    Type
    Indirect Water Heater
    Product Line
    SM
    Product Category
    Water Heater - Solar
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Indirect Fired
    Storage Type
    Tank
    Coils Quantity
    2
    Mount Type
    Floor
    Installation Location
    Indoor
    Performance
    First Hour Delivery Learn More
    First Hour Delivery
    Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
    305 Gallons
    Continuous Recovery Rate
    305 Gallons
    Dimensions
    Storage Volume
    103 Gallons
    Cold Water Inlet
    1 Inch
    Hot Water Outlet
    1 Inch
    Boiler Supply
    1 Inch
    Boiler Return
    3/4 Inch
    Product Height
    72 1/4 Inches
    Product Width
    26 3/8 Inches
    Product Depth
    26 3/8 Inches
    Product Weight
    298 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    8 Years
