Williams - LH-B Series - 2.5 Ton - Horizontal Fan Coil - Direct Expansion - 7kW Heat - Right Hand - 208V/60Hz/1 Phase

Model: H010DXB302R072 Item Number: 153233

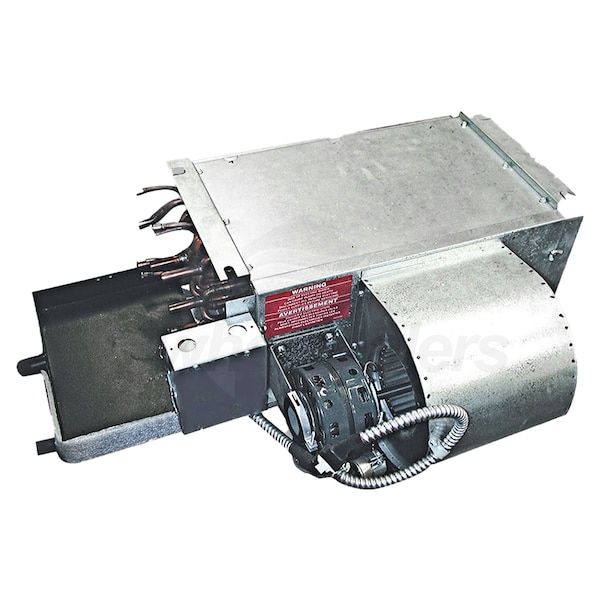

Williams H010DXB302R072
Williams H010DXB302R072
Enlarge Image
Originally $1,263.00, you save 5%
Our Price: $1,199.85
synchrony card icon
$200 / Month
Suggested monthly payments with 6 month financing.
Ships in 2-5 Business Days
Williams - LH-B Series - 2.5 Ton - Horizontal Fan Coil - Direct Expansion - 7kW Heat - Right Hand - 208V/60Hz/1 Phase
Williams - LH-B Series - 2.5 Ton - Horizontal Fan Coil - Direct Expansion - 7kW Heat - Right Hand - 208V/60Hz/1 Phase Model: H010DXB302R072 Item Number: 153233
Product Q&A
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    New Learn More
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    175 Pounds Learn More
    175 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Fan Coil
    Product Line
    LH-B Series
System (Type)
Select Attribute
View More


Overview for Williams H010DXB302R072

Williams, a leading HVAC solutions provider, has been delivering quality heating and cooling solutions since 1916. With a commitment to innovation and quality, Williams offers a wide range of products including gas-fired heating, gravity wall heating, and fan coils. Williams manufactures their products using state-of-the-art machinery and adhering to the highest safety standards. With a long-standing reputation for excellence Williams is dedicated to providing industry-leading products and exceptional customer service for both residential and commercial applications. The LH-B horizontal fan coil is versatile and compact, making it perfect for various uses. It features a slim design suited for drop-ceiling, closet, hallway, and hidden spaces. Equipped with a powder coated epoxy drain pan and a variety of coil, motor, and control choices, these models do not have an external cabinet. This fan coil uses a DX coil also known as direct expansion coil. It cools air by evaporating refrigerant. The liquid-vapor mixture enters the coil, cools the air, and leaves as a gas. This fan coil also offers a dedicated right hand connection to provide a larger space for valve packages and controls.
  • Quality Insulation and Materials
  • Features heavy gauge cold rolled steel cabinet with 3.35 PCF density 1/2" fiberglass insulation and 1/2" OD copper coils, tested at 350 PSIG high pressure.
  • High Quality Coils
  • Coils are made of copper tube with aluminum fins, equipped with manual air vent and tested at high pressures.
  • Salt-Spray Tested Drain Pan
  • Galvanized drain pan with epoxy powder coating, subjected to a 650-hour salt spray test for corrosion resistance.
  • Efficient Motor
  • Three-speed PSC motor with quick connect plug for easy installation.
  • Air Duct Openings
  • One inch reinforced duct collar on return and supply air openings.
  • Reliable Filtration System
  • Equipped with a one-inch fiberglass, replaceable filter for clean air circulation.
  • Specifications
    View More


    General Information
    Fan Coil
    Product Line
    LH-B Series
    Product Category
    Hydronic Air Handler
    Refrigerant Type
    Configuration Learn More
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Electric Heat
    Capacity Learn More
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.5 Tons
    Electric Heat Capacity
    7 kW
    Nominal Minimum Cooling Capacity
    20500 BTU
    Nominal Maximum Cooling Capacity
    24600 BTU
    Maximum Air Flow
    985 CFM
    Maximum Flow Rate
    5.8 GPM
    Electrical Data
    208 Volts
    60 Hz
    Cold Water Inlet
    3/4 Inch
    Product Height
    11 Inches
    Product Width
    50 Inches
    Product Depth
    23 Inches
    Product Weight
    175 Pounds
    Shipping Weight
    220 Pounds
    ETL Listed
    UL Listed
    AHRI Certified
    ASTM Certified
    NFPA Rated Learn More
    NFPA Rated
    The National Fire Protection Association has developed a system for indicating the health, flammability and reactivity hazards of some chemicals.
    Warranty Information
    Warranty Learn More
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    1 Year
