Williams 70% AFUE 50,000 BTU NG Double Sided Wall Furnace Monterey
Model: 5009622AItem Number: 100049
(2)
Ask a Question
Enlarge Image
View All
Specification Highlights
Condition
New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
127 Pounds 127 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Product Category
Furnace
UPC
0093909299019
View More
Nominal Heating Capacity (BTU/hr)
Fuel Type
Fuel TypeTo create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
+Share This Product
Recommended Accessories
Required AccessoriesAdd All Required
Installation Accessories
Features
Features
Overview for Williams 5009622A

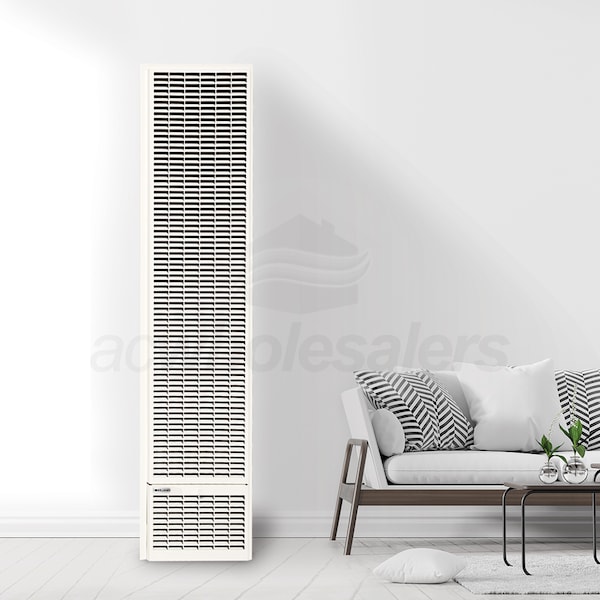

The Williams Monterey Wall furnace is an ideal solution for you space heating needs. The patented side relief draft hood design reduces heat loss and ensures that you spend less and stay more comfortable. Whether recessed into the wall or surface mounted using the optional free standing kit, the soft-white powder coated finish provides a discrete durable finish that blends into any home's decor.
Safe Pilot Ignition
With matchless pilot ignition, the guess work is taken out of lighting the furnace. By sealing the pilot and ignitor away from dirt and debris, the electronic igniter lights the furnace safely and reliably.
Power Free Operation
A lot of things can go wrong during a power outage, but your furnace shutting off is not one of them. It will continue to work even when you lose power.
Efficient Draft Hood Design
The side-relief opening draft hood is designed to pull draft air from the sides of the furnace to limit heat loss through the chimney.
Vent Limit Safety Switch
The vent limit safety switch is equipped on all Monterey furnaces. This turns off the unit in case the chimney is blocked, protecting your family from carbon monoxide and fires.
Optional Blower
An optional blower offering manual or automatic operation is available. This improves circulation of the warm air and reduces temperature differences throughout the room.
Product Note
A thermostat does not come included with this unit. The Williams P322016 thermostat is compatible and can be found under the "Accessories" tab. Alternatively, any standard millivolt thermostat can be used. Product dimensions reflect measurement of furnace coming out from the wall.
Specifications
Specifications
Overview
Product Category
Furnace
UPC
0093909299019
General Information
Type
Gas Wall Furnace
Product Line
Monterey
Product Category
Furnace
Fuel Type Fuel TypeTo create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Vent TypeProducts that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Modulating/Staging Modulating/StagingStages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Single Stage
Gas Conversion Kit
Available
Performance
AFUE AFUEAFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
70 %
Heating BTU
50000
High Fire Input
50000 BTU
High Fire Output
36900 BTU
Dimensions
Gas Connection Size
1/2 Inch
Product Height
65 3/4 Inches
Product Width
16 Inches
Product Depth
6 Inches
Product Weight
127 Pounds
Shipping Weight
137 Pounds
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
