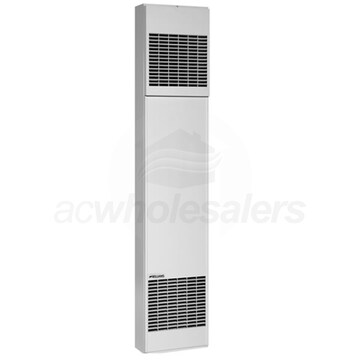

Williams - 31,400 BTU - Electric Wall Furnace - Single-Sided - 9.2 kW

Model: 3144030 Item Number: 71195
5.0 out of 5 stars5.0 out of 5 stars
(2)
Write A Review
Williams 3144030
PREVIOUS
NEXT
Williams 3144030
Williams 3144030
Enlarge Image
Williams 3144030
Williams 3144030
View All
Originally $1,250.00, you save 5%
Our Price: $1,187.50
synchrony card icon
$198 / Month
Suggested monthly payments with 6 month financing.
Click for important monthly payment and offer information.
In-Stock
Ships Thursday, September 12th
Shipping to60601
Williams - 31,400 BTU - Electric Wall Furnace - Single-Sided - 9.2 kW
Williams - 31,400 BTU - Electric Wall Furnace - Single-Sided - 9.2 kW Model: 3144030 Item Number: 71195
$1,187.50
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
5.0 out of 5 stars5.0 out of 5 stars
(2)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    50 Pounds Learn More
    50 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Furnace
    UPC
    0093909298821
View More
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Williams 3144030

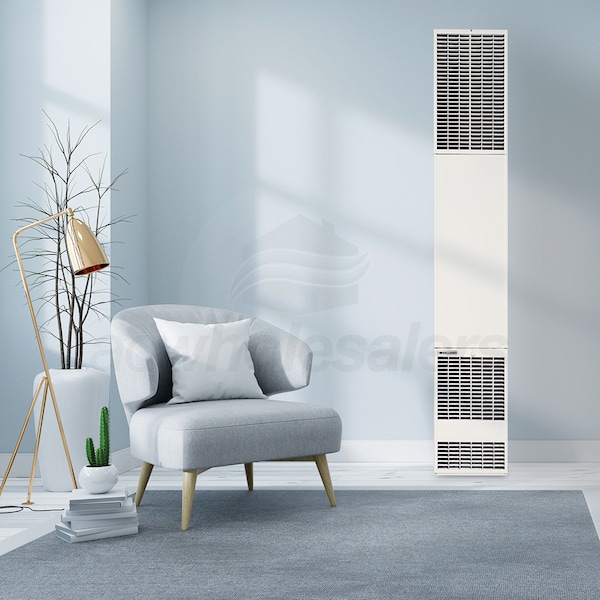

The Electric Forsaire furnace require less than a foot of floor space and can be recessed into the stud space or surface mounted. Whether recessed into the wall or surface mounted, the soft-white powder coated finish provides a discrete durable finish that blends into any home's decor.
  • Counterflow Blower System
  • The Forsaire furnace has a counterflow blower system that takes air from the ceiling and blows the warm air at the floor. This helps to distribute the heat evenly throughout the room.
  • Optional Multi-room Heating
  • With the rear outlet register accessory (sold separately), you can heat up two different rooms with just the one freestanding furnace.
  • Powerful Blower
  • A powerful patented peripheral blower system combined with a heavy duty motor, deliver warm air evenly and quietly. The blower features a self-cleaning air scoop design and the motor is cooled by a centrifugally swept airstream. No filter is required.
    • Product Note
    A thermostat does not come included with this unit and is required. The Williams P322016 thermostat is compatible and can be found under the "Accessories" tab. Alternatively, any standard millivolt thermostat can be used.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Furnace
    UPC
    0093909298821
    General Information
    Type
    Electric Wall Furnace
    Product Line
    Forsaire
    Product Category
    Furnace
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Electric
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Single Stage
    Blower Motor Type
    Single Speed
    Mount Type
    Wall
    Performance
    Heating BTU
    31400
    Heating Capacity
    31400 BTU
    Electric Heat Capacity
    9.2 kW
    Maximum Air Flow
    375 CFM
    Electrical Data
    Voltage
    207-253 Volts
    Minimum Circuit Ampacity
    40 Amps
    Dimensions
    Product Height
    72 1/2 Inches
    Product Width
    14 1/8 Inches
    Product Depth
    7 Inches
    Product Weight
    50 Pounds
    Shipping Weight
    60 Pounds
    Certifications
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
    Reviews
    5.0 out of 5 stars5.0 out of 5 stars
    (2)
    (2)
    View More

    Reviews

    Product Q&A
    View More

    Product Q&A

    Be the first to ask a question.

    Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.
