Williams Monterey - 25,000 BTU - Gas Fired Wall Furnace - NG - 70% AFUE - Single Sided - High Altitude

Model: 25H9622A Item Number: 109487
Williams 25H9622A
PREVIOUS
NEXT
Williams 25H9622A
Williams 25H9622A
Enlarge Image
Williams 25H9622A
Williams 25H9622A
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    73 Pounds Learn More
    73 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Furnace
    UPC
    93909006211
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Williams 25H9622A

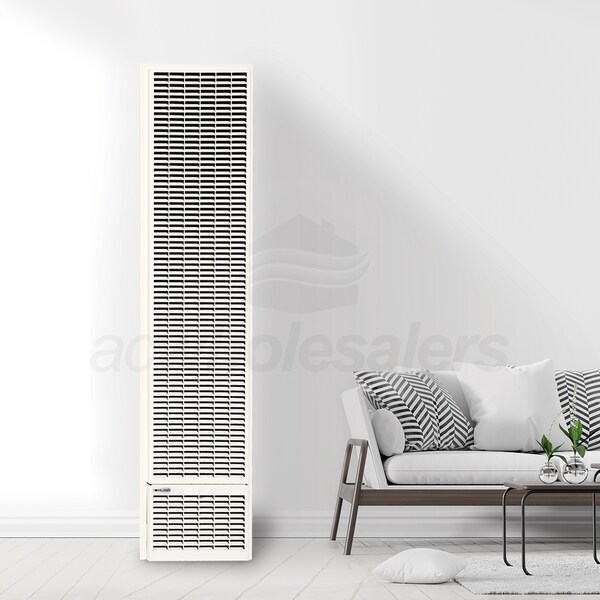

The Williams Monterey Wall furnace is an ideal solution for you space heating needs. The patented side relief draft hood design reduces heat loss and ensures that you spend less and stay more comfortable. Whether recessed into the wall or surface mounted using the optional free standing kit, the soft-white powder coated finish provides a discrete durable finish that blends into any home's decor.
  • Safe Pilot Ignition
  • With matchless pilot ignition, the guess work is taken out of lighting the furnace. By sealing the pilot and ignitor away from dirt and debris, the electronic igniter lights the furnace safely and reliably.
  • Power Free Operation
  • A lot of things can go wrong during a power outage, but your furnace shutting off is not one of them. It will continue to work even when you lose power.
  • Efficient Draft Hood Design
  • The side-relief opening draft hood is designed to pull draft air from the sides of the furnace to limit heat loss through the chimney.
  • Vent Limit Safety Switch
  • The vent limit safety switch is equipped on all Monterey furnaces. This turns off the unit in case the chimney is blocked, protecting your family from carbon monoxide and fires.
  • Optional Blower
  • An optional blower offering manual or automatic operation is available. This improves circulation of the warm air and reduces temperature differences throughout the room.
  • Product Note
    A thermostat does not come included with this unit. The Williams P322016 thermostat is compatible and can be found under the "Accessories" tab. Alternatively, any standard millivolt thermostat can be used. Product dimensions reflect measurement of furnace coming out from the wall.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Furnace
    UPC
    93909006211
    General Information
    Type
    Gas Wall Furnace
    Product Line
    Monterey
    Product Category
    Furnace
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Chimney Vent
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Single Stage
    Blower Motor Type
    Available
    Maximum Altitude
    8000 Feet
    Gas Conversion Kit
    Available
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    70 %
    Heating BTU
    25000
    High Fire Input
    25000 BTU
    High Fire Output
    17870 BTU
    Dimensions
    Gas Connection Size
    1/2 Inch
    Product Height
    65 3/4 Inches
    Product Width
    16 Inches
    Product Depth
    6 Inches
    Product Weight
    73 Pounds
    Shipping Weight
    83 Pounds
    Certifications
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
