Williams 76% AFUE 17,700 BTU NG Direct-Vent Wall Furnace 5,500 Ft Alt

Model: 1773512 Item Number: 72691
Williams 1773512
PREVIOUS
NEXT
Williams 1773512
Williams 1773512
Enlarge Image
Williams 1773512
Williams 1773512
View All
Originally $2,999.00, you save 5%
Our Price: $2,849.05
synchrony card icon
$50 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Factory-Direct
Ships in 8-12 Weeks
Williams 76% AFUE 17,700 BTU NG Direct-Vent Wall Furnace 5,500 Ft Alt
Williams 76% AFUE 17,700 BTU NG Direct-Vent Wall Furnace 5,500 Ft Alt Model: 1773512 Item Number: 72691
$2,849.05
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    47 Pounds Learn More
    47 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Furnace
    UPC
    0093909299118
Nominal Heating Capacity (BTU/hr)
Select Attribute
Fuel Type
Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Select Attribute
Features
View More

Features

Overview for Williams 1773512

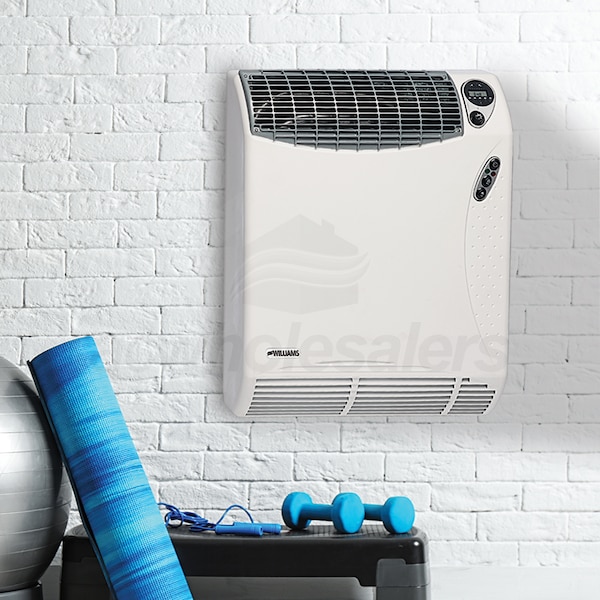

Williams High-Efficiency Direct-Vent Furnaces are a low-profile furnace that needs just minutes to warm up any room. Needing no outside air, this Williams furnace is perfect for safe operation while adding comfort to any room or space. Styled with a durable white finish, this furnace can look great in just about any room.
  • Space-Saving Size
  • The High-Efficiency model is a low-profile furnace that can fit in just about any space. Having a unique wall mount design, this furnace requires no floor space.
  • Electric Ignition
  • It can be a hassle to light a pilot with a match. More importantly, it can also be dangerous. This is why the Williams 1773512 uses an electric ignition, to make lighting your furnace as easy as possible.
  • Sealed Combustion
  • Rather than using indoor air to fuel combustion, the Williams 1773512 pulls intake air directly from the outdoors. This means the heat your furnace generates isn't fed back into the system, maximizing efficiency.
  • Year Round Comfort
  • A two-speed recirculating fan takes cool air off the ground and recirculates it back in to the room.
  • Programmable Timer
  • The High-Efficiency Direct-Vent furnaces comes standard with a programmable thermostat which allows for precise operating and timing control.
  • Easy Installation
  • The Williams Direct Vent furnace mounts directly on the outside-facing wall. Venting is accomplished through a single 9 opening to the outdoors and vent materials that will accommodate most installations are included."
  • Product Includes
  • Williams High-Efficiency NG Direct-Vent Furnace
  • Built-In Thermostat
  • All Vent Materials Needed for a 9 Thick Wall"
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Furnace
    UPC
    0093909299118
    General Information
    Type
    Gas Wall Furnace
    Product Line
    High-Efficiency Direct-Vent
    Product Category
    Furnace
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Single Stage
    Blower Motor Speed
    PSC Multi-Speed
    Mount Type
    Wall
    Gas Conversion Kit
    Available
    Color
    White
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    76 %
    Heating BTU
    17700
    High Fire Input
    17700 BTU
    High Fire Output
    13500 BTU
    Maximum Air Flow
    129 CFM
    Dimensions
    Gas Connection Size
    1/2 Inch
    Product Height
    28 1/8 Inches
    Product Width
    21 3/4 Inches
    Product Depth
    8 1/4 Inches
    Product Weight
    47 Pounds
    Shipping Weight
    57 Pounds
    Certifications
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
    Heat Exchanger Warranty
    Limited 10 Years
