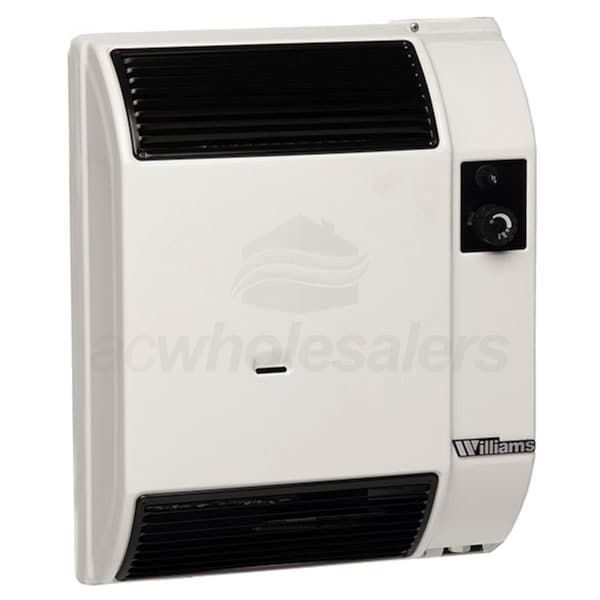

Williams High-Efficiency Direct-Vent - 7,400 BTU - Gas Fired Furnace - NG - 72% AFUE - Single-Stage - Wall Mounted - Up To 5,500 Ft Altitude

Model: 0743512 Item Number: 62311
Williams 0743512
PREVIOUS
NEXT
Williams 0743512
Enlarge Image
Originally $1,402.00, you save 5%
Our Price: $1,331.90
synchrony card icon
$222 / Month
Suggested monthly payments with 6 month financing.
In-Stock
Ships Friday, December 6th
Shipping to60601
Williams High-Efficiency Direct-Vent - 7,400 BTU - Gas Fired Furnace - NG - 72% AFUE - Single-Stage - Wall Mounted - Up To 5,500 Ft Altitude
Williams High-Efficiency Direct-Vent - 7,400 BTU - Gas Fired Furnace - NG - 72% AFUE - Single-Stage - Wall Mounted - Up To 5,500 Ft Altitude Model: 0743512 Item Number: 62311
$1,331.90
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    34 Pounds Learn More
    34 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Gas Wall Furnace
    Product Line
    High-Efficiency Direct-Vent
Nominal Heating Capacity (BTU/hr)
Select Attribute
Fuel Type
Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Williams 0743512

Williams High-Efficiency Direct-Vent Furnaces are a low-profile solution that need just minutes to warm up any room. Direct vent operation means that inside air is not needed for combustion, so your warm air stays inside where it belongs. With a clean, durable white finish and space-saving wall mounted design, the Williams High-Efficiency Direct-Vent Furnace is a perfect heating option in almost any room.
  • Space-Saving Size
  • The High-Efficiency model is a low-profile furnace that can fit in just about any space. Having a unique wall mount design, this furnace requires no floor space.
  • No Electricity Needed
  • During power outages, you have a lot to worry about, but your furnace won't be one. The Direct-Vent furnace requires no electricity and all models are equipped with a self-generating millivolt thermostat.
  • Sealed Combustion
  • Rather than using indoor air to fuel combustion, the Williams 0743512 pulls intake air directly from the outdoors. This means the heat your furnace generates isn't fed back into the system, maximizing efficiency.
  • Easy Installation
  • The Williams Direct Vent furnace mounts directly on the outside-facing wall. Venting is accomplished through a single 9" opening to the outdoors and vent materials that will accommodate most installations are included.
  • Product Includes
  • Williams High-Efficiency NG Direct-Vent Furnace
  • All Vent Materials Needed for a 9" Thick Wall
  • Specifications
    View More

    Specifications

    General Information
    Type
    Gas Wall Furnace
    Product Line
    High-Efficiency Direct-Vent
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Single Stage
    Blower Motor Type
    Available
    Mount Type
    Wall
    Gas Conversion Kit
    Available
    Color
    White
    UPC
    939090738794
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    72 %
    Heating BTU
    7400
    High Fire Input
    7400 BTU
    High Fire Output
    5500 BTU
    Dimensions
    Gas Connection Size
    1/2 Inch
    Product Height
    22 1/4 Inches
    Product Width
    18 5/8 Inches
    Product Depth
    6 3/4 Inches
    Product Weight
    34 Pounds
    Shipping Weight
    44 Pounds
    Certifications
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
    Heat Exchanger Warranty
    Limited 10 Years
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Product Q&A
    View More

    Product Q&A

    Be the first to ask a question.

    Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.
