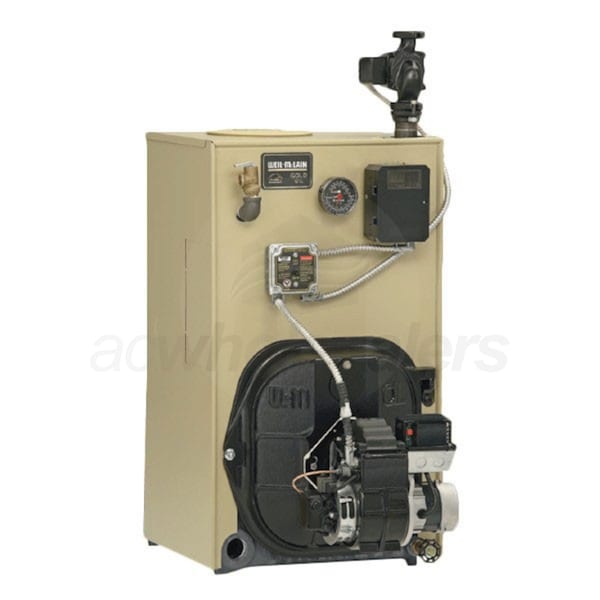

Weil-McLain P-WTGO-5 175,000 BTU 85.0% AFUE Hot Water Oil Boiler

Model: P-WTGO-5 Item Number: 50060
Ask a Question
Weil-McLain P-WTGO-5
PREVIOUS
NEXT
Weil-McLain P-WTGO-5
Enlarge Image
Our Price: $3,467.00
$61 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Ships in 2-5 Business Days
Weil-McLain P-WTGO-5 175,000 BTU 85.0% AFUE Hot Water Oil Boiler
Weil-McLain P-WTGO-5 175,000 BTU 85.0% AFUE Hot Water Oil Boiler Model: P-WTGO-5 Item Number: 50060
$3,467.00
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    760 Pounds Learn More
    Product Line
    WTGO
    Medium
    Hot Water
View More
DHW Production
Learn More
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Weil-McLain P-WTGO-5

Overview for Weil-McLain 386700834Over the last 130 years, Weil-McLain has built a reputation of designing some of the most reliable boilers in the marketplace. Their dedication to producing lasting heating solutions is seen in every boiler they make. The WTGO is a flexible, durable oil-fired combi boil. In the WTGO, Weil-McLain has taken their exceptional WGO design and added a tankless coil for water heating, making the WTGO an inclusive heating solution. Efficient energy use is a high point of the WTGO's design, allowing you to make the most of your energy dollar. Weil-McLain knows the value of longevity, that's why they used cast-iron for WTGO boiler sections. Between the high efficiency, durable construction, and flexibility the WTGO excels both as a replacement combi boiler and as an addition to new construction.
Product Features
Simple to ServiceInspecting and maintaining a WTGO is incredibly simple. Between the swing-away burner door and the quick-open top panel, the WTGO is always accessible. Weil-McLain uses a recessed target wall design to protect the unit from flue brushes during cleaning.Captured SealsSilicone-coated fiber ropes are used for sealing the boiler sections. These seals expand and contract with the boiler, keeping the unit watertight and preventing contaminants from entering your system.Venting FlexibilityWTGO boilers have two vent connections, one on the rear and one on the top. By providing an alternate venting set up, Weil-McLain has ensured that the WTGO is suited for a variety of installation conditions.Efficiency-Boosting InsulationHeat retention is critical to energy efficiency. Heat leakage represents energy use without any comfort gains. An extended, insulated steel jacket prevents heat from escaping the WTGO and improves the efficiency.Dual Purpose, One Small PackageSatisfying your space heating and DHW needs does not need to take up a lot of space. The tankless water heater included with the P-WTGO-5 does not inflate the size of the unit; it enjoys the same compact size as comparable Weil-McLain WGO boilers.
Product Includes
  • (1) Weil-McLain P-WTGO-5 Hot Water Boiler
  • (1) Weil-McLain 590-921-612 Tankless Water Heater
  • (1) Draft Damper
  • (1) Taco 007 Circulator
Product Note
This boiler does not include an oil burner. Please see the Accessories tab for compatible burners if you require one.
Product Note
This boiler does not include an oil burner. Please see the Accessories tab for compatible burners if you require one.
Specifications
View More

Specifications

General Information
Product Line
WTGO
Medium Learn More
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type Learn More
Oil
Combustion Type Learn More
Conventional
Vent Type Learn More
Chimney Vent
DHW Production Learn More
Yes
Modulating/Staging Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Burner Model
Sold Separately
UPC
0672619140158
Performance
AFUE Learn More
85 %
Input Rate
1.45 GPH
DOE Heating Capacity Learn More
175000 BTU
Net I=B=R Capacity Learn More
152000 BTU
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
7 Inches
Supply Connection
1 1/2 Inches
Return Connection
1 1/2 Inches
Product Height
35 5/8 Inches
Product Width
20 1/4 Inches
Product Depth
20 Inches
Product Weight
760 Pounds
Shipping Width
23 Inches
Shipping Height
39 Inches
Shipping Depth
33 Inches
Shipping Weight
770 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Energy Star Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
2101552
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
2 Years
Heat Exchanger Warranty
20 Years
