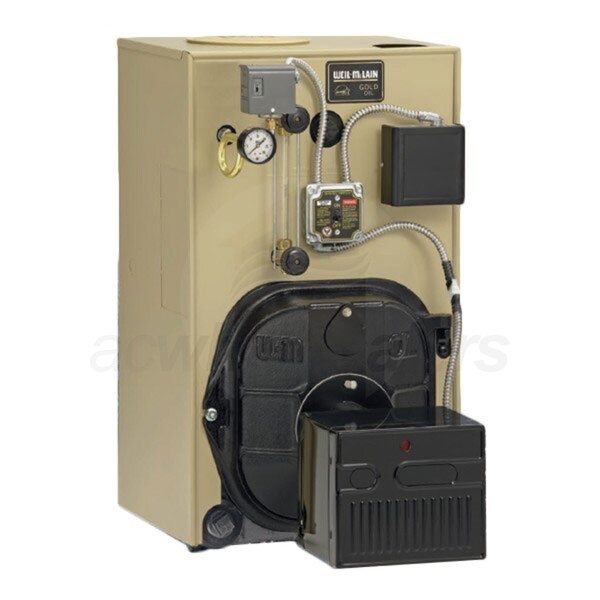

Weil-McLain P-SGO-6 158,000 BTU 83.7% AFUE Steam Oil Boiler

Model: P-SGO-6 Item Number: 49905
Weil-McLain P-SGO-6
PREVIOUS
NEXT
Weil-McLain P-SGO-6
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Out of Stock
Sorry, this product is currently unavailable.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Boiler
    UPC
    0672619139527
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Weil-McLain P-SGO-6

Overview for Weil-McLain 386700822Over the last 130 years, Weil-McLain has built a reputation of designing some of the most reliable boilers in the marketplace. Their dedication to producing lasting heating solutions is seen in every boiler they make. The SGO is a flexible, durable, oil-fired heating solution for steam systems. Efficient energy use is a high point of the SGO's design, allowing you to make the most of your energy dollar. Weil-McLain knows the value of longevity, that's why they used cast-iron for SGO boiler sections. Between the high efficiency, durable construction, and flexibility the SGO excels both as a replacement boiler and as an addition to new construction.
Product Features
Simple to ServiceInspecting and maintaining a SGO is incredibly simple. Between the swing-away burner door and the quick-open top panel, the SGO is always accessible. Weil-McLain uses a recessed target wall design to protect the unit from flue brushes during cleaning.Captured SealsSilicone-coated fiber ropes are used for sealing the boiler sections. These seals expand and contract with the boiler, keeping the unit watertight and preventing contaminants from entering your system.Venting FlexibilitySGO boilers have two vent connections, one on the rear and one on the top. By providing an alternate venting set up, Weil-McLain has ensured that the WGO is suited for a variety of installation conditions.Efficiency-Boosting InsulationHeat retention is critical to energy efficiency. Heat leakage represents energy use without any comfort gains. An extended, insulated steel jacket prevents heat from escaping the SGO and improves the efficiency.
Product Includes
  • (1) Weil-McLain P-SGO-6 Steam Boiler
  • (1) Draft Damper
Product Note
This boiler does not include an oil burner. Please see the Accessories tab for compatible burners if you require one.
Product Note
This boiler does not include an oil burner. Please see the Accessories tab for compatible burners if you require one.
Specifications
View More

Specifications

Overview
Product Category
Boiler
UPC
0672619139527
General Information
Product Line
SGO
Product Category
Boiler
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam
Heat Exchanger Material
Cast Iron
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Conventional
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production Learn More
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Available
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Staging
Mount Type
Floor
Maximum Altitude
2000 Feet
Assembly Type
Packaged
Includes Pump
No
Burner Model
Sold Separately
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
83 %
Input Rate
1.75 GPH
DOE Heating Capacity Learn More
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
210000 BTU
Net I=B=R Capacity Learn More
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
158000 BTU
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
7 Inches
Supply Connection
2 1/2 Inches
Return Connection
2 Inches
Product Height
35 5/8 Inches
Product Width
20 1/4 Inches
Product Depth
26 1/4 Inches
Shipping Width
23 Inches
Shipping Height
39 Inches
Shipping Depth
43 Inches
Shipping Weight
920 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
2101548
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
10 Years
