Weil-McLain 101K BTU 95.0% AFUE Hot Water Gas Boiler Direct Vent

Model: ECO 110 Item Number: 77941
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Weil-McLain ECO 110
PREVIOUS
NEXT
Weil-McLain ECO 110
Weil-McLain ECO 110
Weil-McLain ECO 110
Weil-McLain ECO 110
Weil-McLain ECO 110
Weil-McLain ECO 110
Enlarge Image
Weil-McLain ECO 110
Weil-McLain ECO 110
Weil-McLain ECO 110
Weil-McLain ECO 110
Weil-McLain ECO 110
Weil-McLain ECO 110
View All
Product Discontinued
Sorry, this product is no longer available.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    110 Pounds Learn More
    110 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler
    UPC
    0672619206939
View More
DOE Heating Capacity (BTU/Hr)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Weil-McLain ECO 110

Overview for Weil-McLain 383800004Over the last 130 years, Weil-McLain has built a reputation of designing some of the most reliable boilers in the marketplace. Their dedication to producing long-lasting heating solutions is seen in every boiler they make. The ECO hot water boiler is an ideal blend of efficiency and value. A remarkable 95% AFUE sets the ECO 110 apart from other boilers. This efficiency is possible in such a small package thanks to condensing technology and a modulating burner. Condensing boilers trap gas that escapes traditional boilers and reuse the heat within. Modulation reduces unnecessary fuel use by scaling the burner output to match your heating demands. The ECO includes a control that is both easy to use and easy to read. Both the ECO and the control mount on the wall for convenience and to save space. Weil-McLain's ECO brings efficiency and flexibility to the forefront in a package that suits any space.
Product Features

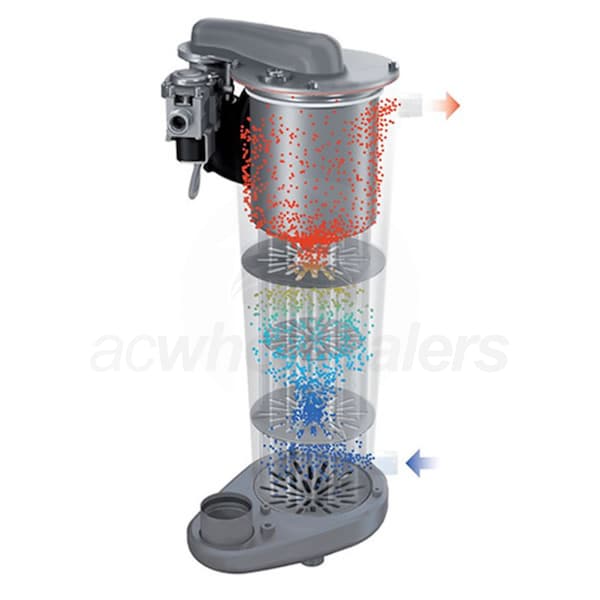

Fire Tube Heat ExchangerThe ECO forgoes a typical heat exchanger for a fire tube heat exchanger. Fire tube heat exchangers are known for their steady temperatures. They allow for larger water content than traditional heat exchangers, which reduces short cycling and temperature fluctuations.Outdoor Reset ControlAn outdoor reset sensor is included with every ECO boiler. This sensor allows your boiler temperature to be adjusted relative to the temperature outside, eliminating excess energy use and guaranteeing comfort.Easy Installation & MaintenanceThe ECO's low profile and wall mounting mean that it can be installed almost anywhere. The internal components are situated for quick maintenance, and removable control terminal blocks simplify wiring.
Product Includes
  • (1) Weil-McLain ECO 110 Hot Water Boiler
  • (1) Outdoor Temperature Sensor
  • (1) Wall Mount Bracket
  • (1) Natural Gas to Liquid Propane Conversion Kit
  • Fire Tube Heat Exchanger
  • The ECO forgoes a typical heat exchanger for a fire tube heat exchanger. Fire tube heat exchangers allow for larger water content than traditional heat exchangers, which reduces short cycling and temperature fluctuations.
  • Outdoor Reset Control
  • An outdoor reset sensor is included with every ECO boiler. This sensor allows your boiler temperature to be adjusted relative to the temperature outside, eliminating excess energy use and guaranteeing comfort.
  • Easy Installation & Maintenance
  • The ECO's low profile and wall mounting mean that it can be installed almost anywhere. The internal components are situated for quick maintenance, and removable control terminal blocks simplify wiring.
    • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler
    UPC
    0672619206939
    General Information
    Product Line
    ECO
    Product Category
    Boiler
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Combustion Type Learn More
    Combustion Type
    Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
    Condensing
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    DHW Production Learn More
    DHW Production
    DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
    No
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Modulating
    Mount Type
    Wall
    Minimum Altitude
    0 Feet
    Maximum Altitude
    5500 Feet
    Assembly Type
    Packaged
    Includes Pump
    No
    Gas Conversion Kit
    Included
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    95 %
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    110000 BTU
    Minimum Input Capacity
    22000 BTU
    DOE Heating Capacity Learn More
    DOE Heating Capacity
    Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
    101000 BTU
    Net I=B=R Capacity Learn More
    Net I=B=R Capacity
    I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
    88000 BTU
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    Yes
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    3 Inches
    Gas Connection Size
    1/2 Inch
    Supply Connection
    1 Inch
    Return Connection
    1 Inch
    Product Height
    30 3/4 Inches
    Product Width
    17 5/8 Inches
    Product Depth
    18 3/8 Inches
    Product Weight
    110 Pounds
    Shipping Weight
    117 Pounds
    Certifications
    CSA Listed
    Yes
    Energy Star Listed
    Yes
    ASME Certified
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    6046942
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
    Heat Exchanger Warranty
    10 Years
