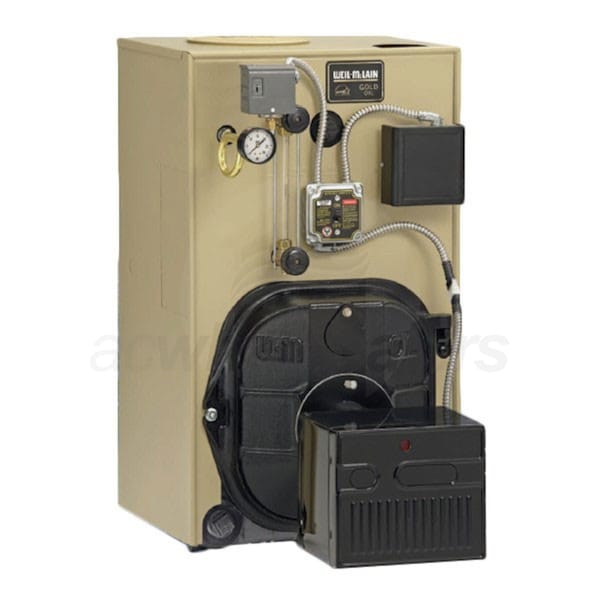

Weil-McLain 200K 82.7% Steam Oil Boiler Chimney Vent Burner

Model: A-SGO-8 Item Number: 49907
Ask a Question
Weil-McLain A-SGO-8
PREVIOUS
NEXT
Weil-McLain A-SGO-8
Enlarge Image
Our Price: $3,209.43
$57 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Ships in 3-4 Weeks
Weil-McLain 200K 82.7% Steam Oil Boiler Chimney Vent Burner
Weil-McLain 200K 82.7% Steam Oil Boiler Chimney Vent Burner Model: A-SGO-8 Item Number: 49907
$3,209.43
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Product Line
    SGO
    Medium
    Steam
    Heat Exchanger Material
    Cast Iron
View More
Bundle Includes 3 items
  • (1) Weil-McLain SGO Section Assembly (386700670)
  • (1) Weil-McLain SGO Jacket (416700184)
  • (1) Weil-McLain SGO Collector Hood (450020192)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Weil-McLain A-SGO-8

Over the last 130 years, Weil-McLain has built a reputation of designing some of the most reliable boilers in the marketplace. Their dedication to producing lasting heating solutions is seen in every boiler they make. The SGO is a flexible, durable, oil-fired heating solution for steam systems. Efficient energy use is a high point of the SGO's design, allowing you to make the most of your energy dollar. Weil-McLain knows the value of longevity, that's why they used cast-iron for SGO boiler sections. Between the high efficiency, durable construction, and flexibility the SGO excels both as a replacement boiler and as an addition to new construction.
Product Note
This is a knockdown containing a boiler section assembly, jacket, and collector hood. Trim and a burner are required for installation. Low water cutoff must be purchased separately.
Bundle Includes 3 items
  • Weil-McLain SGO Section Assembly
    Model: 386700670
    Item Number: 49916
    Quantity: 1
  • Weil-McLain SGO Jacket
    Model: 416700184
    Item Number: 49913
    Quantity: 1
  • Weil-McLain SGO Collector Hood
    Model: 450020192
    Item Number: 49910
    Quantity: 1
Specifications
View More

Specifications

Included In This Bundle

Bundle Overview
Bundle Overview
386700670 Specifications
416700184 Specifications
450020192 Specifications
General Information
Product Line
SGO
Medium Learn More
Steam
Heat Exchanger Material
Cast Iron
Fuel Type Learn More
Oil
Combustion Type Learn More
Conventional
Vent Type Learn More
Chimney Vent
DHW Production Learn More
Available
Modulating/Staging Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
No
Assembly Type
Knockdown
Burner Model
Sold Separately
Performance
AFUE Learn More
82 %
Input Rate
2.3 GPH
DOE Heating Capacity Learn More
266000 BTU
Net I=B=R Capacity Learn More
200000 BTU
Efficiency Type
Thermal Efficiency
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
7 Inches
Supply Connection
2 1/2 Inches
Return Connection
2 Inches
Product Height
35 5/8 Inches
Product Width
20 1/4 Inches
Product Depth
32 1/2 Inches
Shipping Weight
1090 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
2122056
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
2 Years
Heat Exchanger Warranty
10 Years
General Information
Product Line
SGO
Dimensions
Product Weight
975 Pounds
Shipping Weight
975 Pounds
Certifications
Country of Origin
United States
General Information
Product Line
SGO
Dimensions
Product Height
35 5/8 Inches
Product Width
20 1/4 Inches
Product Depth
32 1/2 Inches
Product Weight
50 Pounds
Certifications
Country of Origin
United States
General Information
Product Line
SGO
Dimensions
Product Weight
10 Pounds
Certifications
Country of Origin
United States
