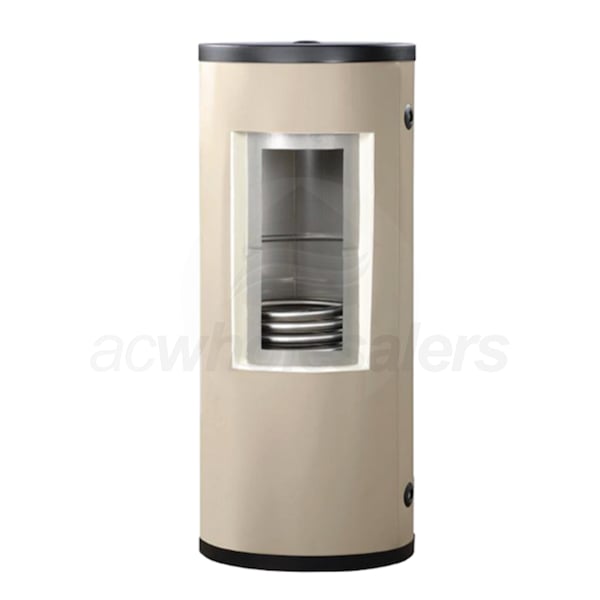

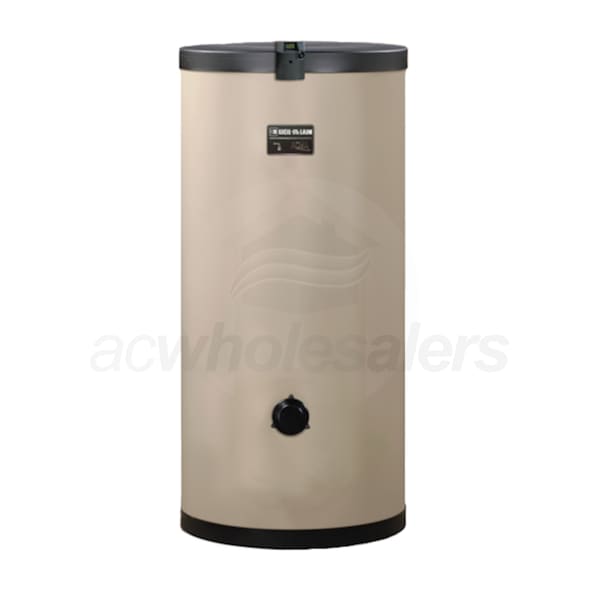

Weil-McLain Aqua Plus 85 - 85 Gallon Capacity - Residential Indirect Water Heater

Model: 633600003 Item Number: 93193
Weil-McLain 633600003
PREVIOUS
NEXT
Weil-McLain 633600003
Weil-McLain 633600003
Weil-McLain 633600003
Enlarge Image
Weil-McLain 633600003
Weil-McLain 633600003
Weil-McLain 633600003
View All
Our Price: $2,827.28
synchrony card icon
$50 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
In-Stock
Ships Monday, December 16th
Shipping to60601
Weil-McLain Aqua Plus 85 - 85 Gallon Capacity - Residential Indirect Water Heater
Weil-McLain Aqua Plus 85 - 85 Gallon Capacity - Residential Indirect Water Heater Model: 633600003 Item Number: 93193
$2,827.28
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    223 Pounds Learn More
    223 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Water Heater - Indirect-Fired
    UPC
    0672619207677
Tank Size
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Weil-McLain 633600003

Over the last 130 years, Weil-McLain has built a reputation of designing some of the most reliable boilers in the marketplace. If you want to leverage the power and efficiency of your boiler for domestic hot water, then the Aqua Plus 85 is a great choice. The Aqua Plus is a domestic hot water option that fits many applications and is designed for ease of installation in any system. Design features such as consolidated connection points and adjustable leg heights provide simplicity and flexibility when it comes to setting up the Aqua Plus. The large diameter and tight winding of the heat exchanger coil keep the pressure drop and recovery times low. A poly-resin top and woven vinyl outer jacket protect the Aqua Plus from wear and tear and keep the water heater looking as good as it runs.
  • 316L Stainless Steel
  • High quality, durable components provide peace of mind. The Aqua Plus features stainless steel for both its heat exchanger and its storage tank. Stainless steel resists corrosion that could negatively affect the unit's performance.
  • Efficiency-Boosting Insulation
  • Discouraging heat loss is one of the best ways to improve efficiency. The Aqua Plus has two inches of dense foam insulation that brings heat loss as low as 0.4 degrees per hour.
  • Fully Passivated and Welded Design
  • The Aqua Plus comes fully passivated and welded to protect against corrosive water conditions, eliminating the need for a magnesium anode rod.
  • Digital Control
  • The Aqua Plus features a digital thermostat that ensures precise accuracy for optimal performance. The thermostat probe is already installed for quick and easy wiring. Temperature and pressure relief valves are also standard equipment on the Aqua Plus.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Water Heater - Indirect-Fired
    UPC
    0672619207677
    General Information
    Type
    Indirect Water Heater
    Product Line
    Aqua Plus
    Product Category
    Water Heater - Indirect-Fired
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Indirect Fired
    Storage Type
    Tank
    Coils Quantity
    1
    Application
    Residential
    Connection Type
    NPT
    Capacity
    81.6 Gallons
    Performance
    First Hour Delivery Learn More
    First Hour Delivery
    Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
    347 Gallons
    Continuous Recovery Rate
    280 Gallons
    Dimensions
    Cold Water Inlet
    1 Inch
    Hot Water Outlet
    1 Inch
    Supply Connection
    1 Inch
    Return Connection
    1 Inch
    Product Height
    59 1/2 Inches
    Product Width
    26 Inches
    Product Depth
    26 Inches
    Product Weight
    223 Pounds
    Shipping Weight
    223 Pounds
    Certifications
    AHRI Certified
    Yes
    AHRI Reference Number
    10358739
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
    Vessel Warranty
    12 Years
