Watts Radiant HeatWeave - 50 Sq. Ft. - Radiant Floor Heating Mat - 120V - 24" x 25' - 5 Amps

Model: 12002524HW Item Number: 32617
Watts Radiant 12002524HW
PREVIOUS
NEXT
Watts Radiant 12002524HW
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Radiant Heating
    UPC
    840213086831
Features
View More

Features

Overview for Watts Radiant 12002524HW

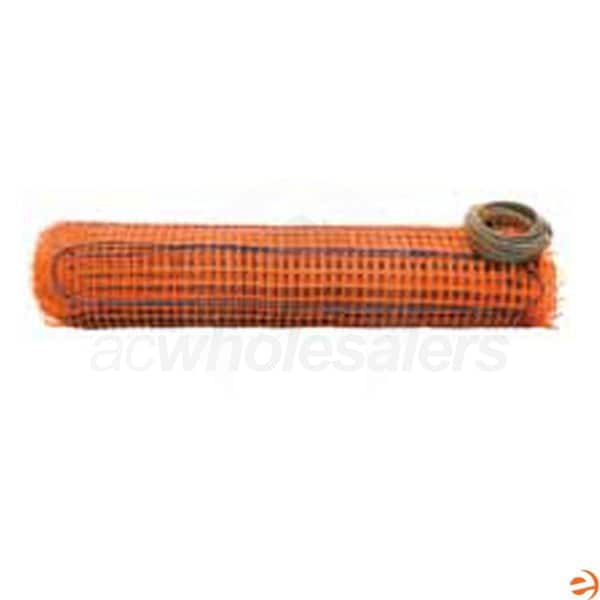

This is a Watts Radiant HeatWeave mat, a pre arranged open mesh mat containing radiant heating wire. The mat style arrangement allows the wire to be easily laid out on the floor to be heated and set in place with thin-set or self-leveling mortar. The heating wire itself is among the best in the industry, with high grade copper heating elements and insulation that is both corrosion and temperature resistant. The 12002524HW is compatible with Watts Radiant thermostats and electric heating accessories, an array of products designed to improve your electric heating system both during and after installation.

Product Features

Dual High-Grade Copper Heating Elements
The heating wire's heating element is made from high quality oxygen-free copper, giving the wire uncompromising heat transfer efficiency while retaining flexibility. The entire wire contains a pair of twisted heating elements which keeps the electromagnetic field generated by the wire to a minimum.

ETFE Wire Insulation with Grounding Jacket
The heating wire is enveloped in a durable ETFE insulation. This unique insulation offers significant resilience against chemical and temperature corrosion. The two wires are then bound together by a stainless steel jacket for grounding and durability purposes.

Single Power Lead
Both wires connect to the power supply with a single power lead, simplifying labor and reducing installation time.

Flexible Mesh Mat
The mat the wires are secured inside of is flexible and is easily cut. This allows you to cut the mat to fit odd shaped areas as well as secure the mat to the underfloor easily with thin-set or self-leveling mortar.

Specifications
View More

Specifications

Overview
Product Category
Radiant Heating
UPC
840213086831
General Information
Type
Mat
Product Line
HeatWeave
Product Category
Radiant Heating
Application
Floor Heating
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Current Draw
5 Amps
Dimensions
Product Length
25 Feet
Area Covered
50 Square Feet
Product Width
24 Inches
Shipping Weight
7 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
25 Years
