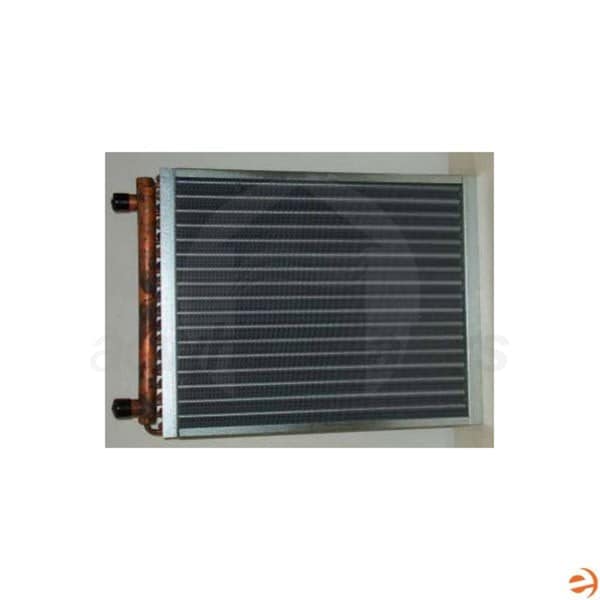

WSD 12H x 18L Water to Air Heat Exchanger 38,000-80,000 BTU

Model: WSD 12X18 Item Number: 45150
WSD WSD 12X18
PREVIOUS
NEXT
WSD WSD 12X18
Enlarge Image
Our Price: $309.00
synchrony card icon
$52 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 2-5 Business Days
WSD 12H x 18L Water to Air Heat Exchanger 38,000-80,000 BTU
WSD 12H x 18L Water to Air Heat Exchanger 38,000-80,000 BTU Model: WSD 12X18 Item Number: 45150
$309.00
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    8.3 Pounds Learn More
    8.3 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Refrigerant Type
    Hydronic
    Casing
    Cased
Features
View More

Features

Overview for WSD WSD 12X18

Hot Water Coil, Water to Air Heat Exchanger is a three row A-shaped coil with twelve fins per inch. It is designed to transfer heat energy between water and another medium (usually air) as quickly and efficiently as possible. Heating coils transmit energy from hot water to a stream of air; cooling coils extract energy from an air stream and add it to cold water. The coils themselves consist of a matrix of copper tubes through which the water flows. The tubes run back and forth between two end-plates in an arrangement that lets the air flow perpendicular to the tubes. The tubes pass through and are attached to a layered array of thin metal plates known as fins. The fins are also perpendicular to the tubes, which mean they lie parallel to the direction of air flow. The air flows between them. Energy either passes from the water via the tubes and fins to the air or from the air via the fins and tubes to the water.
Specifications
View More

Specifications

General Information
Refrigerant Type
Hydronic
Casing
Cased
Style
Slab Coil
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
80000 BTU
Minimum Input Capacity
38000 BTU
Dimensions
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
12 1/4 Inches
Product Width
20 Inches
Product Depth
3 1/2 Inches
Product Weight
8.3 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
