Triangle Tube 46 Gallon Indirect Hot Water Heater

Model: SMART 50 Item Number: 23180

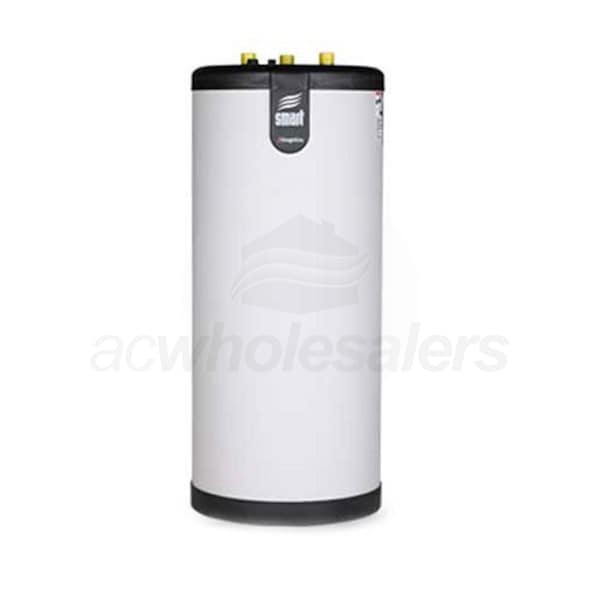

Triangle Tube SMART 50
PREVIOUS
NEXT
Triangle Tube SMART 50
Enlarge Image
Sold Out
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    165 Pounds Learn More
    165 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Indirect Water Heater
    Product Line
    Smart
Features
View More

Features

Overview for Triangle Tube SMART 50

Triangle Tube is best known for two things: feats of hydronic innovation and incredibly efficient products. These qualities are intertwined in Triangle Tube's Smart Series Indirect Fired water heaters. The Smart water heaters feature an exclusive "tank-in-tank" design that Triangle Tube has been refining for three decades. To heat domestic water, the outer tank of the Smart 50 fills with boiler water and the surface of the inner tank becomes a heat exchanger. Two inches of polyurethane insulation ensures that your domestic hot water stays hot, and stainless steel construction of the inner tank provides exceptional durability. When it comes to making a decision on your next water heater, the Smart lives up its name.
Specifications
View More

Specifications

General Information
Type
Indirect Water Heater
Product Line
Smart
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Coils Quantity
1
Connection Type
NPT
Performance
First Hour Delivery Learn More
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
370 Gallons
Continuous Recovery Rate
330 Gallons
Dimensions
Storage Volume
46 Gallons
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Supply Connection
1 1/4 Inches
Return Connection
1 1/4 Inches
Product Height
57 Inches
Product Width
22 Inches
Product Depth
22 Inches
Product Weight
165 Pounds
Shipping Weight
174 Pounds
Certifications
ETL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Vessel Warranty
10 Years
