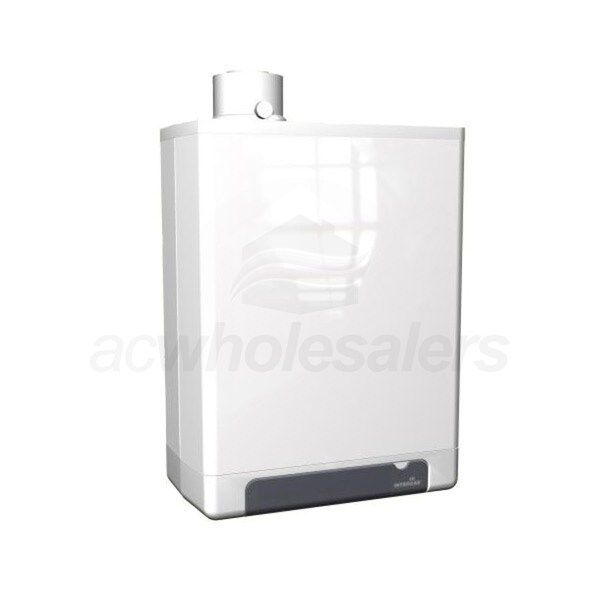

Triangle Tube 110K BTU 93.5% AFUE Hot Water Gas Boiler

Model: CC 125S Item Number: 22947
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Triangle Tube CC 125S
PREVIOUS
NEXT
Triangle Tube CC 125S
Triangle Tube CC 125S
Enlarge Image
Triangle Tube CC 125S
Triangle Tube CC 125S
View All
Not For Individual Sale
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    80 Pounds Learn More
    80 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler
View More
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Triangle Tube CC 125S

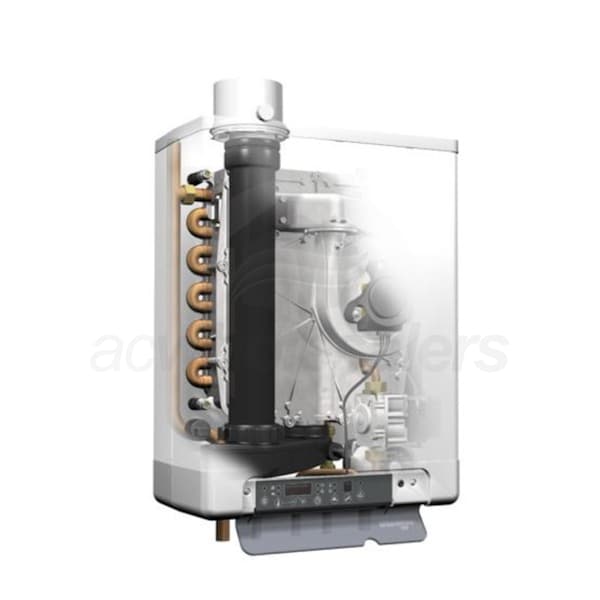

Triangle Tube is best known for two things: feats of hydronic innovation and incredibly efficient products. The Challenger Solo hot water boiler checks both of those boxes. This is a high-efficiency, low NOx, low noise hot water boiler that suits many applications. The condensing technology behind Challenger Solo boilers will capture and reuse gaseous heat that escapes traditional boilers. A unique cast-aluminum heat exchanger with copper waterways is the heart of the Challenger Solo. This blend of materials provides efficient heating and exceptional durability. Vertical flueways mean that you'll enjoy those benefits in a compact design. Indeed, the Challenger Solo has incredibly low profile and mounts conveniently on your wall. The Challenger is perfect for closet installations or just saving space in traditional installations, and it includes a bracket to simplify piping wherever you install it. If you have three cubic feet of space, you have room for heating for your home. The ease-of-installation means that there is more reason than ever to add a high-efficiency Challenger boiler to your system.
  • Outdoor Reset Control
  • All Challenger Solo boilers include an outdoor reset sensor and outdoor reset control. This allows your boiler to regulate the temperature of your home based on the temperature outdoors which saves energy without sacrificing comfort.
  • Precision Through Sensors
  • Sensors at the boiler supply and return measure temperature and relay that information to your boiler so it can further refine its output and guarantee comfort and efficiency.
  • Modulating Burner
  • The Challenger can make fine adjustments to heating output because of its modulating burner. This burner allows minute, incremental changes in heat production to guarantee that you aren't using more energy than you need to be.
  • Venting Options
  • The CC 125s is a sealed combustion hot water boiler and it vents conveniently through your wall. Challenger Solo boilers support concentric venting which reduces the number of vent pipes from two to one and further reduces the space necessary to install.
  • Product Includes
  • (1) Triangle Tube CC 125s Hot Water Boiler
  • (1) Outdoor Reset Sensor
  • (1) Wall Mounting Bracket
    • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler
    General Information
    Product Line
    Challenger Solo
    Product Category
    Boiler
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Combustion Type Learn More
    Combustion Type
    Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
    Condensing
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    DHW Production Learn More
    DHW Production
    DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
    No
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Modulating
    Connection Type
    NPT
    Mount Type
    Wall
    Minimum Altitude
    0 Feet
    Maximum Altitude
    2000 Feet
    Assembly Type
    Packaged
    Includes Pump
    No
    Gas Conversion Kit
    Available
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    93 %
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    124000 BTU
    Minimum Input Capacity
    33000 BTU
    DOE Heating Capacity Learn More
    DOE Heating Capacity
    Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
    110000 BTU
    Net I=B=R Capacity Learn More
    Net I=B=R Capacity
    I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
    96000 BTU
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    Yes
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    3 Inches
    Gas Connection Size
    1/2 Inch
    Supply Connection
    1 Inch
    Return Connection
    1 Inch
    Product Height
    28 Inches
    Product Width
    17 3/4 Inches
    Product Depth
    9 1/2 Inches
    Product Weight
    80 Pounds
    Shipping Weight
    90 Pounds
    Certifications
    CSA Listed
    Yes
    Energy Star Listed
    Yes
    ASME Certified
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    AHRI Reference Number
    5537231
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
    Heat Exchanger Warranty
    10 Years
