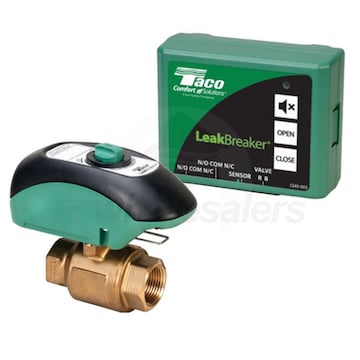

Taco 3/4" NPT LeakBreaker Water Heater Shut-Off Valve and Actuator

Model: LB-075-H-1LF Item Number: 80312
Taco LB-075-H-1LF
PREVIOUS
NEXT
Taco LB-075-H-1LF
Taco LB-075-H-1LF
Taco LB-075-H-1LF
Enlarge Image
Taco LB-075-H-1LF
Taco LB-075-H-1LF
Taco LB-075-H-1LF
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Water Heater Accessories
    UPC
    687752422375
Features
View More

Features

Overview for Taco LB-075-H-1LF

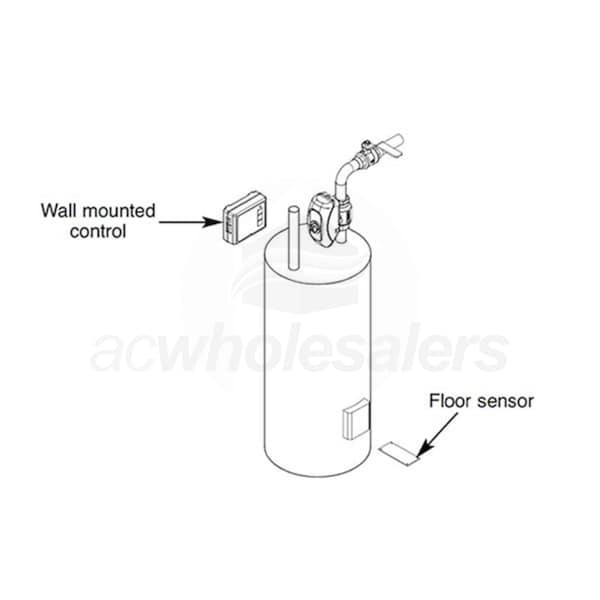

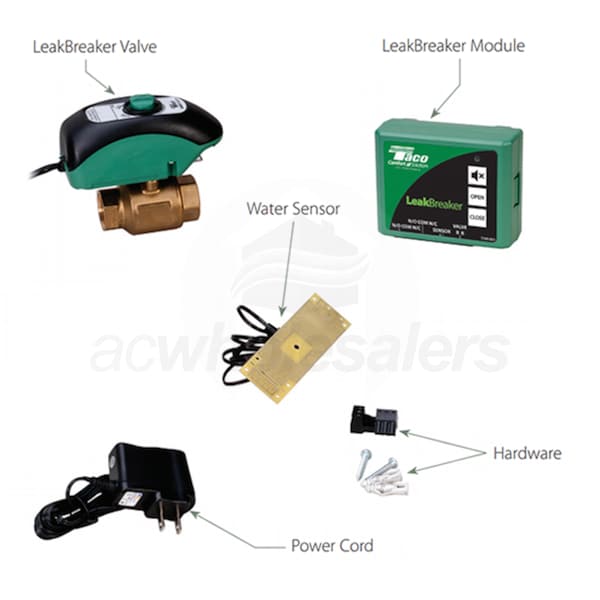

The Taco LeakBreaker® is a leak detection device that prevents flood damage from leaks in a water heater. Consisting of a control unit, valve with actuator and sensor, the LeakBreaker® can be easily installed on any water heater and is designed to shut off the incoming cold water supply as soon as a leak is detected. This protection device features test and reset functions, along with a multi-color LED light and audible alarm to let you know the status of the LeakBreaker® at all times.
  • Immediate Detection
  • The LeakBreaker® features a highly responsive water sensor that detects even the slightest amount of moisture. A signal is then sent to the valve's actuator to immediately shut off the incoming water supply.
  • Quick Installation
  • The LeakBreaker's® plumb and plug design is engineered to make new and retrofit installations a breeze. Components come pre-wired to further simplify the process - just plug in the sensor, valve, and power supply to ensure leak damage protection.
  • Resettable, Testable
  • Taco's LeakBreaker® features test and reset functions, allowing you to ensure the device is working properly. The controller includes a switch to open and close the actuator at any time, along with a manual alarm shut-off.
  • Battery Backup
  • The Leakbreaker® can be powered with batteries, meaning you'll never miss a leak during power outages.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Water Heater Accessories
    UPC
    687752422375
    General Information
    Type
    Water Heater Shut-Off
    Product Line
    LeakBreaker
    Product Category
    Water Heater Accessories
    Connection Type
    NPT
    Material
    Brass
    Potable Water Usage
    Yes
    Performance
    Maximum Fluid Temperature
    220 F
    Maximum Operating Pressure
    140 PSI
    Maximum Static Pressure
    300 PSI
    Maximum Shut Off Pressure
    125 PSI
    Maximum Ambient Temperature
    135 F
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Connection Size
    3/4 Inch
    Product Height
    4 3/8 Inches
    Product Width
    3 Inches
    Product Depth
    4 7/8 Inches
    Shipping Weight
    3 Pounds
    Certifications
    NSF Certified Learn More
    NSF Certified
    The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
    Yes
    Lead Free
    Yes
