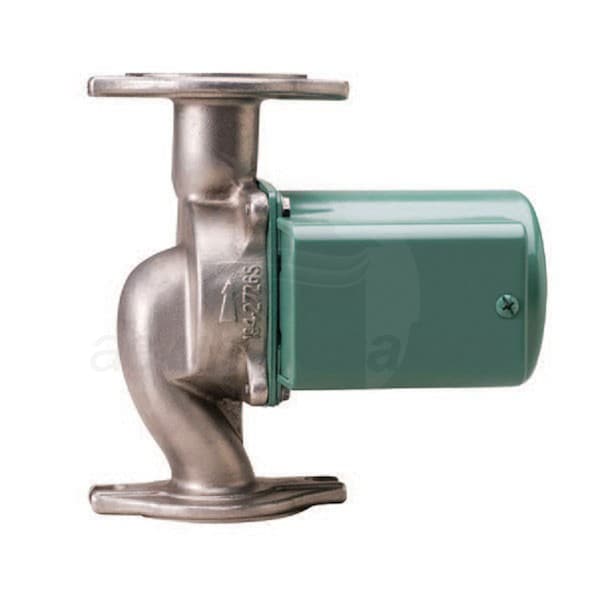

Taco 1/25 HP Stainless Steel Cartridge Circulator

Model: 008-SF6 Item Number: 33224
Taco 008-SF6
PREVIOUS
NEXT
Taco 008-SF6
Enlarge Image
Our Price: $540.39
synchrony card icon
$91 / Month
Suggested monthly payments with 6 month financing.
Only 4 In-Stock
Ships Friday, March 29th
Shipping to60601
Taco 1/25 HP Stainless Steel Cartridge Circulator
Taco 1/25 HP Stainless Steel Cartridge Circulator Model: 008-SF6 Item Number: 33224
$540.39
Only 4 In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    8 Pounds Learn More
    8 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler Accessories
    UPC
    687752609752
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Taco 008-SF6

Taco is at the forefront of circulator innovation. Their drive to provide the most efficient, reliable pumps in the industry can be seen across their entire catalog. High head applications can be tricky for pumps. The 008-SF is Taco's solution to high head woes in both residential and smaller commercial systems. It is great as a replacement circulator in radiant applications or as a new addition to a diverse range of heating systems. The universal flange-to-flange dimension of the 008-SF makes it quick to install, even if you are replacing a different pump. A design that circumvents the need for traditional maintenance is coupled with durable components to provide you peace of mind. The stainless steel construction of this circulator makes it ideal for applications where corrosion resistance is important. With Taco, your hydronic circulation is in good hands.
  • Maintenance Free
  • Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.
  • Replaceable Cartridge Design
  • All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
  • High Capacity, High Efficiency
  • In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
  • Typical Product Applications
  • Hydronic Heating
  • Radiant In-Floor Heating
  • Radiant Panel Heating
  • Closed Loop Solar Heating Systems
  • Heat Recovery
  • Water Source Heat Pump
  • Open-Loop Solar Heat
  • Domestic Water Recirculation
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler Accessories
    UPC
    687752609752
    General Information
    Type
    Circulator
    Product Line
    008 Series
    Product Category
    Boiler Accessories
    Motor Type
    Single Speed
    Connection Type
    Flanged
    Material
    Stainless Steel
    Flange Orientation
    Standard
    DHW Compatible Learn More
    DHW Compatible
    Can be used in Domestic Hot Water applications (baths, sinks, showers).
    Yes
    Performance
    Maximum Head
    15 Feet
    Maximum Flow Rate
    14 GPM
    Maximum Fluid Temperature
    230 F
    Horsepower
    0.04
    Maximum Operating Pressure
    125 PSI
    RPM
    3250 RPM
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    0.84 Amps
    Dimensions
    Product Height
    6 3/8 Inches
    Product Width
    4 3/4 Inches
    Product Depth
    6 Inches
    Product Weight
    8 Pounds
    Shipping Weight
    9 Pounds
    Certifications
    UL Listed
    Yes
    NSF Certified Learn More
    NSF Certified
    The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    3 Years
