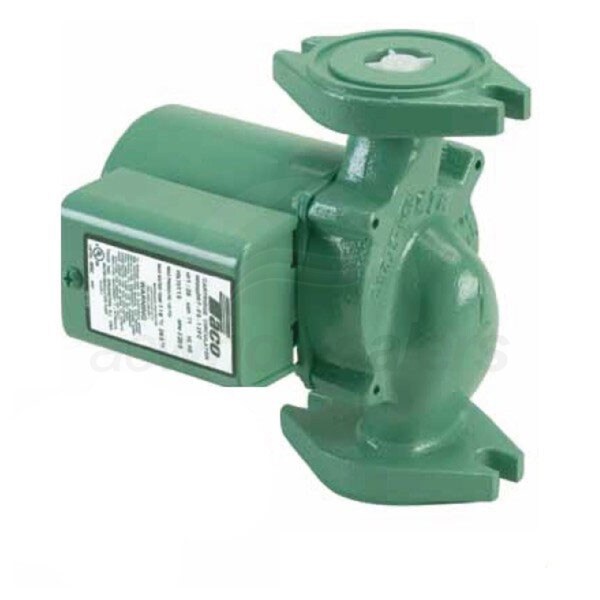

Taco 1/25 HP Cast Iron Prority Zoning Circulator with IFC

Model: 007-ZF5-3IFC Item Number: 33202
Taco 007-ZF5-3IFC
PREVIOUS
NEXT
Taco 007-ZF5-3IFC
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    9 Pounds Learn More
    9 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Boiler Accessories
    UPC
    687752540970
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Taco 007-ZF5-3IFC

The priority zoning line of Taco circulators brings a PC board mounted switching relay package to the classic "00" series design. The result is a low-maintenance, easy-to-install, and intelligent addition to your hydronic system. Chances are you have enjoyed heating or domestic hot water thanks to a Taco 007-ZF at some point in your life. The 007-ZF's popularity is owed to its versatility and reliability. It provides efficient, single stage circulation across a range of applications. The universal flange-to-flange dimension of the 007-ZF makes it quick to install, even if you are replacing a different pump. This circulator includes both low voltage and high voltage terminal strips for easy electrical connections. With Taco, your hydronic circulation is in good hands.
  • Priority Zoning
  • Not all zones are created equal. This circulator includes a priority switch which allows you to designate a primary zone. Circulators will defer to the primary zone's heating demands before responding to other zones.
  • Versatility Through Compatibility
  • Taco designed the priority zoning circulator to fit into any hydronic system regardless of the other equipment present. Zone valves, thermostats, and other circulators are all compatible with this pump, making it a perfect complement to any zoned system.
  • Integral Flow Check
  • By including a removable integral flow check, Taco has improved flow performance and eliminated the need for separate in-line flow checks. All gravity flow prevention is handled by the pump, streamlining your system and reducing installation costs.
  • Maintenance Free
  • Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.
  • Replaceable Cartridge Design
  • All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
  • High Capacity, High Efficiency
  • In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
  • Typical Product Applications
  • Larger Residential Zones
  • Indirect Water Heaters
  • Adding Zones
  • Zoning with Circulators
  • Prioritizing Undersized Zones
  • Product Note
    Cast iron cannot be used in domestic hot water or potable water applications.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Boiler Accessories
    UPC
    687752540970
    General Information
    Type
    Circulator
    Product Line
    007 Series
    Product Category
    Boiler Accessories
    Connection Type
    Flanged
    Material
    Cast Iron
    Flange Orientation
    Standard
    Performance
    Maximum Head
    8.5 Feet
    Maximum Flow Rate
    17 GPM
    Maximum Fluid Temperature
    230 F
    Horsepower
    0.04
    Maximum Operating Pressure
    125 PSI
    RPM
    3250 RPM
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    0.71 Amps
    Dimensions
    Product Height
    6 3/8 Inches
    Product Width
    5 Inches
    Product Depth
    5 7/8 Inches
    Product Weight
    9 Pounds
    Shipping Weight
    9 Pounds
    Certifications
    UL Listed
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    3 Years
