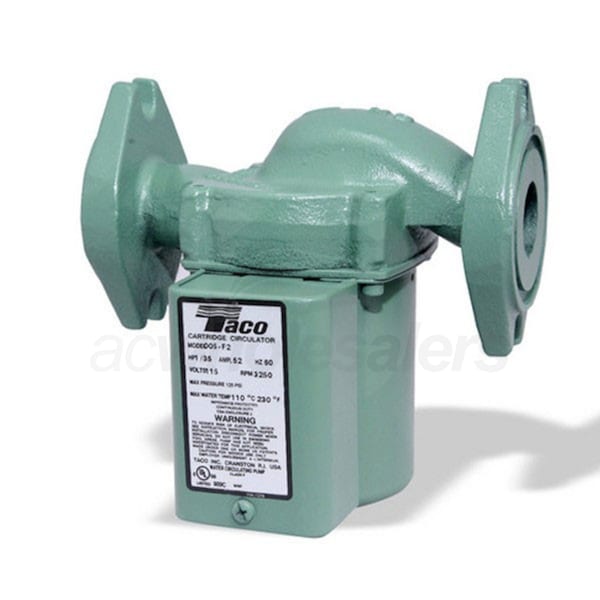

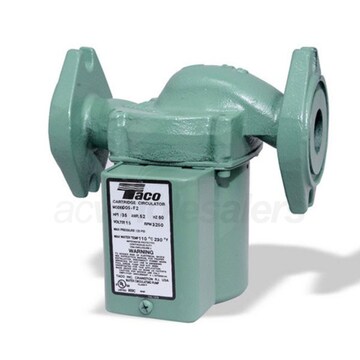

Taco 1/25 HP Cast Iron Variable Speed Cartridge Circulator

Model: 007-VSF5 Item Number: 33193
Ask a Question
Taco 007-VSF5
PREVIOUS
NEXT
Taco 007-VSF5
Enlarge Image
Our Price: $581.00

Ships in 4-7 Business Days
Taco 1/25 HP Cast Iron Variable Speed Cartridge Circulator
Taco 1/25 HP Cast Iron Variable Speed Cartridge Circulator Model: 007-VSF5 Item Number: 33193
$581.00
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Low Price Guarantee Learn More
Low Price Guarantee
Shop with Confidence knowing you have the Right system at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know and we will match the price of any online competitor.

Simply call our sales or customer service department at 866-631-6389 and one of our representatives will be happy to price match the product(s) for you.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    8 Pounds Learn More
    8 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Circulator
    Product Line
    007 Series
View More
Features
View More

Features

Overview for Taco 007-VSF5

Variable speed circulators are one of the best ways to improve circulation, and system efficiency. Taco's variable speed setpoint circulators will maintain a user-set fixed temperature or differential through shifting system conditions and demands. By scaling circulation and temperature mixing to your specific needs" to "By constantly monitoring system conditions and adjusting speed to match current conditions, the variable speed setpoint circulator improves system efficiency. The universal flange-to-flange dimension of Taco's "00" series circulators makes installation quick, even if you are replacing a different pump. With Taco, your hydronic circulation is in good hands.
Product Note
Cast iron cannot be used in domestic hot water or potable water applications.
Specifications
View More

Specifications

General Information
Type
Circulator
Product Line
007 Series
Motor Type
Variable Speed
Connection Type
Flanged
Material
Cast Iron
Flange Orientation
Standard
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
No
UPC
687752379570
Performance
Maximum Head
10 Feet
Maximum Flow Rate
23 GPM
Maximum Fluid Temperature
240 F
Horsepower
1/25
Maximum Operating Pressure
125 PSI
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.71 Amps
Dimensions
Product Height
6 3/8 Inches
Product Width
4 3/4 Inches
Product Depth
6 3/8 Inches
Product Weight
8 Pounds
Shipping Weight
9 Pounds
Certifications
UL Listed
Yes
NSF Certified Learn More
NSF Certified
The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
3 Years
