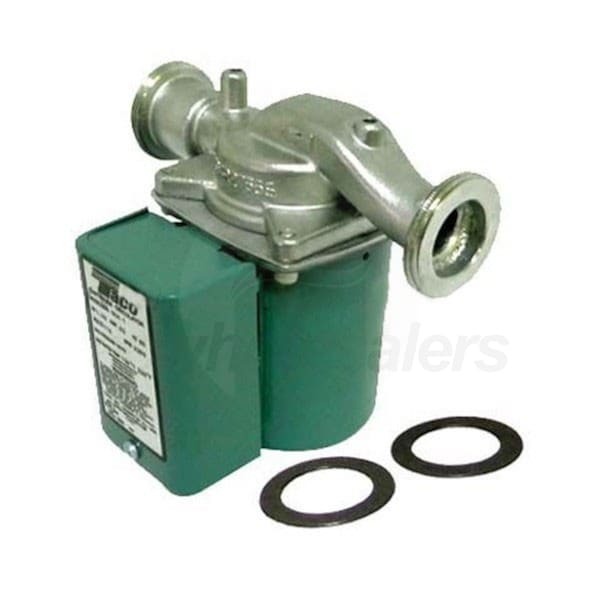

Taco 1/40 HP Stainless Steel Cartridge Circulator

Name: Taco 1/40 HP Stainless Steel Cartridge Circulator
Brand: Taco
SKU: 33132
Price: 272.00 USD
Availability: OutOfStock

Model: 006-SC4-1 Item Number: 33132

Ask a Question

Enlarge Image

Specification Highlights

Condition

New

This product is new and has never been used. It's in its original packaging, which has not been opened.

Weight

7 Pounds

Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.

Product Category

Boiler Accessories

UPC

687752883183

Features

Overview for Taco 006-SC4-1

Taco is at the forefront of circulator innovation. Their drive to provide the most efficient, reliable pumps in the industry can be seen across their entire catalog. The 006-S is an incredibly well-rounded circulator. It excels in both open loop and closed loop systems and is capable of handling a number of chilling or heating applications. The stainless steel construction of this circulator makes it ideal for applications where corrosion resistance is important. A design that circumvents the need for traditional maintenance is coupled with durable components to provide you peace of mind. With Taco, your hydronic circulation is in good hands.

Maintenance Free

Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal.

Replaceable Cartridge Design

All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.

High Capacity, High Efficiency

In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.

Typical Product Applications

Hydronic Heating

Domestic Hot Water Recirculation

Hydro-Air Heating and Cooling

Heat Recovery Units

Water Source Heat Pumps

Drain Down Open Loop Solar Systems

Potable Water Systems

Specifications

Overview

Product Category

Boiler Accessories

UPC

687752883183

General Information

Type

Circulator

Product Line

006 Series

Product Category

Boiler Accessories

Motor Type

Single Speed

Connection Type

Union

Material

Stainless Steel

DHW Compatible

Can be used in Domestic Hot Water applications (baths, sinks, showers).

Yes

Performance

Maximum Head

9 Feet

Maximum Flow Rate

10 GPM

Maximum Fluid Temperature

230 F

Horsepower

1/40

Maximum Operating Pressure

125 PSI

RPM

3250 RPM

Electrical Data

Voltage

115 Volts

Phase

Frequency

60 Hz

Current Draw

0.52 Amps

Dimensions

Product Height

6 3/8 Inches

Product Width

4 7/8 Inches

Product Depth

6 1/4 Inches

Product Weight

7 Pounds

Shipping Weight

6 Pounds

Certifications

UL Listed

Yes

NSF Certified

The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.

Yes

Warranty Information

Warranty

A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.

3 Years

Reviews

Do You Own This Product?

Give us your opinion on this product and help any future buyer's make an informed decision.

Manuals

Taco 00 Series Circulator Pump Brochure

Taco 006 Series Circulator Pump Brochure and Submittal
