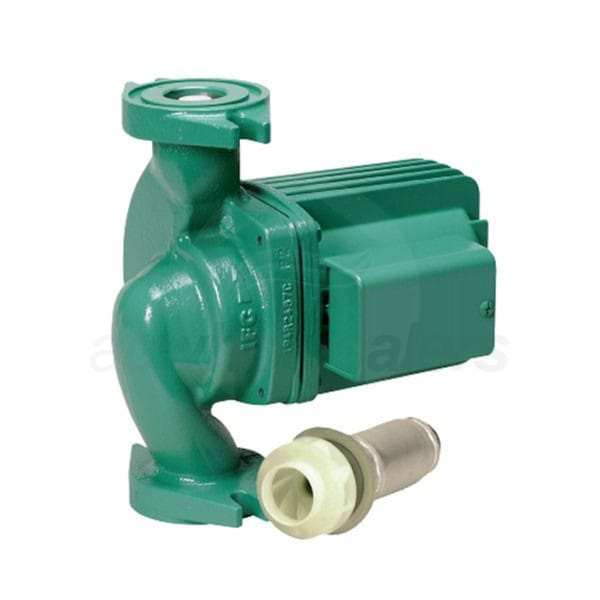

Taco 1/6 HP Cast Iron Cartridge Circulator with IFC

Model: 0013-F3-1IFC Item Number: 32996
Taco 0013-F3-1IFC
PREVIOUS
NEXT
Taco 0013-F3-1IFC
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    12 1/2 Pounds Learn More
    12 1/2 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Circulator
    Product Line
    0013 Series
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Taco 0013-F3-1IFC

Taco is at the forefront of circulator innovation. Their drive to provide the most efficient, reliable pumps in the industry can be seen across their entire catalog. Systems with a high head and high flow requirements can be hard on circulators. The durability, reliability, and power of the 0013-F make it ideal for such situations. Capable of providing efficient circulation for a litany of applications, the 0013-F makes circulation easy for smaller businesses and larger residences. The universal flange-to-flange dimension of the 0013-F makes it quick to install, even if you are replacing a different pump. A design that circumvents the need for traditional maintenance is coupled with durable components to provide you peace of mind. With Taco, your hydronic circulation is in good hands.
  • Maintenance Free
  • Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal. In low temperature applications, protection from corrosion is provided by an anti-condensate baffle.
  • Replaceable Cartridge Design
  • All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
  • High Capacity, High Efficiency
  • In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
  • Integral Flow Check
  • By including an integral flow check, Taco has improved flow performance and eliminated the need for separate in-line flow checks. All gravity flow prevention is handled by the pump, streamlining your system and reducing installation costs.
  • Typical Product Applications
  • Hydronic Heating
  • Heat Exchangers
  • Chilled Water Cooling
  • Product Note
    Cast iron cannot be used in domestic hot water or potable water applications.
    Specifications
    View More

    Specifications

    General Information
    Type
    Circulator
    Product Line
    0013 Series
    Motor Type
    Single Speed
    Connection Type
    Flanged
    Material
    Cast Iron
    Flange Orientation
    Rotated
    DHW Compatible Learn More
    DHW Compatible
    Can be used in Domestic Hot Water applications (baths, sinks, showers).
    No
    UPC
    687752556162
    Performance
    Maximum Head
    32 Feet
    Maximum Flow Rate
    33 GPM
    Maximum Fluid Temperature
    230 F
    Horsepower
    2/12 HP
    Maximum Operating Pressure
    125 PSI
    RPM
    3250 RPM
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    2 Amps
    Dimensions
    Product Height
    6 1/2 Inches
    Product Width
    6 Inches
    Product Depth
    7 1/2 Inches
    Product Weight
    12 1/2 Pounds
    Shipping Weight
    14 Pounds
    Certifications
    UL Listed
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    3 Years
