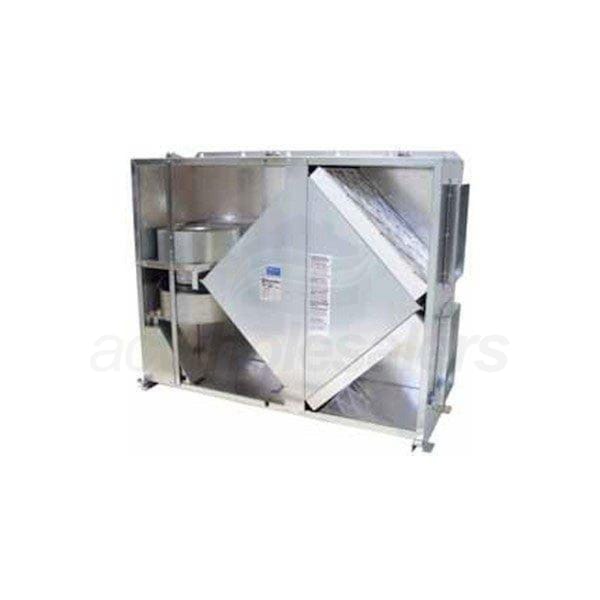

Soler & Palau 500 CFM Energy Recovery Ventilator for All Climates 230V

Model: TRC500-230 Item Number: 50187
Soler & Palau TRC500-230
PREVIOUS
NEXT
Soler & Palau TRC500-230
Enlarge Image
Our Price: $3,374.40
synchrony card icon
$60 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Factory-Direct
This Item Is Built To Order
Soler & Palau 500 CFM Energy Recovery Ventilator for All Climates 230V
Soler & Palau 500 CFM Energy Recovery Ventilator for All Climates 230V Model: TRC500-230 Item Number: 50187
$3,374.40
Factory-Direct
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    160 Pounds Learn More
    160 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Energy Recovery Ventilators (ERVs)
    UPC
    812482010572
Airflow (CFM)
Select Attribute
Voltage
Select Attribute
Features
View More

Features

Overview for Soler & Palau TRC500-230

Classified as "The Ultimate ERV", this series is designed and certified for use in all climates, from areas prone to hot, humid summers to areas with the most extreme winters. The Models TRC exhaust stale air, bring in fresh air and save energy year-round. S&P's TRCs moderate extremes in both temperature and humidity, creating a comfortable indoor environment. The unique moisture transfer capability of the S&P core also eliminates condensation and frost build up in most applications. No mechanical or electrical defrost systems are needed, which means higher heat recovery efficiencies, easier installation and more reliable operation.
  • Soler & Palau TRC500-230 Features
  • AHRI certified performance data for efficiency and cross leakage
  • UL tested flammability and smoke generation that meets NFPA 90A and 90B test standards for commercial applications
  • Easy installation and service
  • Easiest maintenance of any ERV
  • 2 MERV-8 filters
  • Non-Fused disconnect
  • Transformer/relay package allowing simple on/off control
  • Access doors for easy access to blowers, core and filters
  • Integral mounting flange and hanging bracket system
  • 2 Direct Drive, TEFC, Premium Efficient blower motors
  • Fully insulated case
  • Large cores for high efficiency
  • No condensate pan or drain required
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Energy Recovery Ventilators (ERVs)
    UPC
    812482010572
    General Information
    Type
    ERV
    Product Line
    TR
    Product Category
    Energy Recovery Ventilators (ERVs)
    Port Location
    Side
    Performance
    Maximum Air Flow
    600 CFM
    Minimum Air Flow
    225 CFM
    Sensible Recovery Efficiency
    68 %
    Electrical Data
    Voltage
    230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Product Height
    18 Inches
    Product Width
    41 Inches
    Product Depth
    48 Inches
    Product Weight
    160 Pounds
    Shipping Weight
    170 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
    Heat Exchanger Warranty
    10 Years
