Schluter KERDI-LINE - Linear Drain Channel Body - 36" - Offset Drain - Grate Sold Separately

Model: KLVO60E90 Item Number: 22712
Schluter KLVO60E90
PREVIOUS
NEXT
Schluter KLVO60E90
Schluter KLVO60E90
Enlarge Image
Schluter KLVO60E90
Schluter KLVO60E90
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    5.06 Pounds Learn More
    5.06 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Line
    KERDI
    Product Sub-line
    LINE
Features
View More

Features

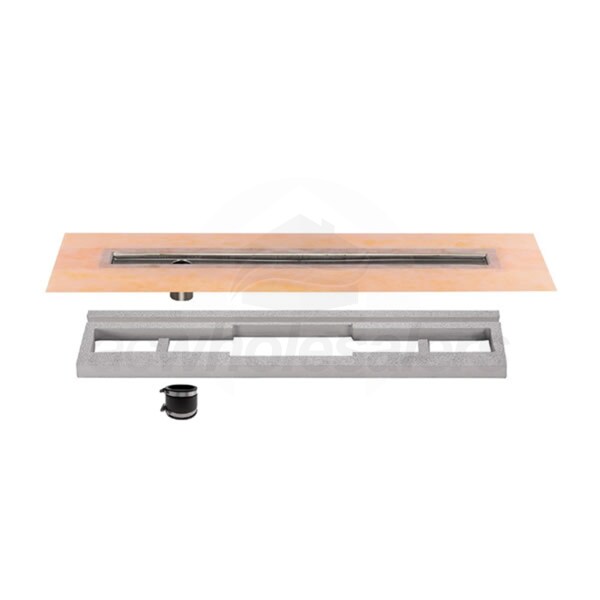

Overview for Schluter KLVO60E90

Schluter-KERDI-LINE is a low profile linear floor drain that can be installed adjacent to walls or at intermediate locations in showers, wet rooms, and other drainage applications. The drain is specifically designed for bonded waterproofing assemblies and as such can be installed in a floor with a single slope. This allows for the use of large scale, intricate tile design even on shower flooring. The KLVO60E90 is the channel body for the KERDI-LINE drain, and can fit a variety of KERDI-LINE grate kits (sold separately).
  • Low Profile
  • The low height of the Schluter-KERDI-LINE drain allows it to sit perfectly flush with laid tile, giving you a visually appealing, effective drainage system.
  • Perfect for Intricate Tile Design
  • The ability to install Schluter-KERDI-LINE along a wall allows you to use nearly the entire floor area of your shower as a tile canvas. Large format tile and intricate patterns are possible with no loss of drain functionality.
  • Superior Corrosion Resistance
  • The stainless steel used in the construction of Schluter-KERDI-LINE protects against corrosive substances in both the short and long term.
  • Product Compatible With
  • Schluter-KERDI-LINE KLAR19EB90 Grate Assembly
  • Schluter-KERDI-LINE KLB19EB90 Grate Assembly
  • Schluter-KERDI-LINE KLAR30EB90 Grate Assembly
  • Schluter-KERDI-LINE KLB30EB90 Grate Assembly
  • Schluter-KERDI-LINE KLDRE90 Tileable Grate Assembly
  • Specifications
    View More

    Specifications

    General Information
    Product Line
    KERDI
    Product Sub-line
    LINE

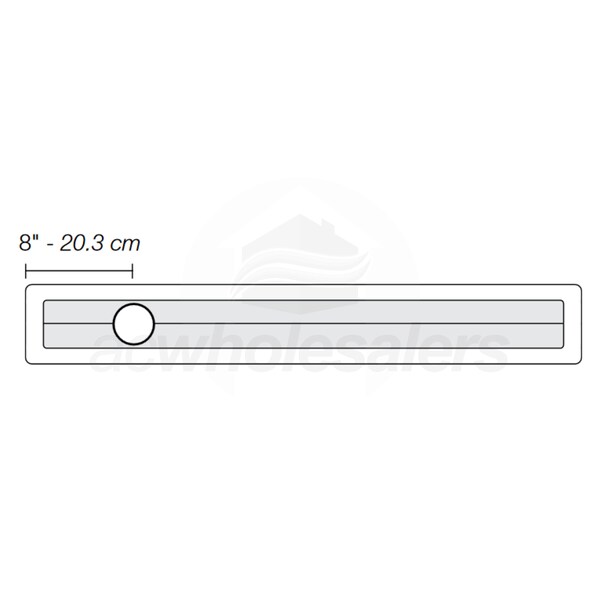

    Drain Location
    Off-Set
    Material
    Stainless Steel
    UPC
    4011832136092
    Dimensions
    Grate Width
    36 Inches
    Product Height
    15/16 Inch
    Product Width
    4 Inches
    Product Length
    38 Inches
    Product Weight
    5.06 Pounds
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
