Sauermann SI30 Condensate Pump 230V Up to 5.5 Tons

Model: SI30-230 Item Number: 30576
Sauermann SI30-230
PREVIOUS
NEXT
Sauermann SI30-230
Enlarge Image
Product Discontinued
Sorry, this product is currently unavailable.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    1.10 Pounds Learn More
    1.10 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Accessories
    UPC
    3700543245148
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Sauermann SI30-230

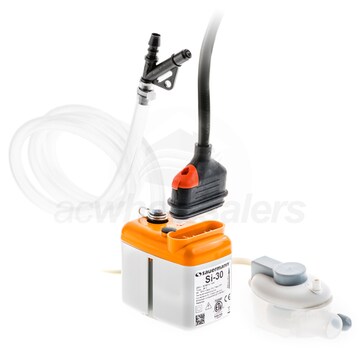

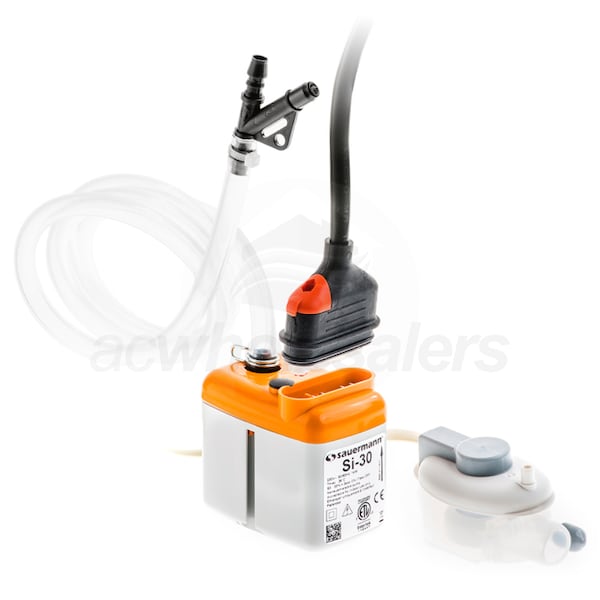

The Sauermann's Si-30 lineup, the Si30-230 condensate pump offers reliable condensate removal for 208-230V wall mounted mini split indoor units. The Si30-230 provides a maximum suction lift of 10 feet, making it easy to protect your home from condensate damage even if your application doesn't allow for a convenient draining location.
  • Easy Installation
  • Installation and service are breeze for an Si30 condensate pump. The power cord plugs directly into the pump without the need for complex wiring and the unit is then mounted using a convenient all-purpose mounting bracket.
  • Whisper Quiet Operation
  • Protection from overflow doesn't have to be disruptive. With a sound level of only 20 dB at a distance of one meter, the Si30-230 is quieter than a human whisper.
  • Product Compatible With
  • 208-230V Mini Split Indoor Units
  • Product Includes
  • (1) Piston Pump
  • (1) Detection Unit
  • (1) All-Purpose Anti-Vibration Mounting Bracket
  • (1) Plug In Power Cable
  • (1) 90 Degree Rubber Elbow
  • (1) Vent Tube
  • (1) Mounting Rail with Adhesive
  • (6) Tie Wraps
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Mini Split Accessories
    UPC
    3700543245148
    General Information
    Type
    Condensate Pump
    Product Category
    Mini Split Accessories
    Application
    Standard
    Subscription Eligible
    No
    Performance
    Suction Lift
    10 Feet
    Maximum Discharge Head
    33 Feet
    Maximum Flow Rate
    0.8333 GPM
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    20 dB
    Electrical Data
    Voltage
    230 Volts
    Power Consumption
    14 Watts
    Frequency
    60 Hz
    Dimensions
    Product Height
    2 3/8 Inches
    Product Width
    5 5/8 Inches
    Product Depth
    1 3/4 Inches
    Product Weight
    1.10 Pounds
    Shipping Width
    3 29/48 Inches
    Shipping Height
    3 29/48 Inches
    Shipping Depth
    4 19/48 Inches
    Shipping Weight
    0.9 Pounds
    Certifications
    UL Listed
    Yes
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
