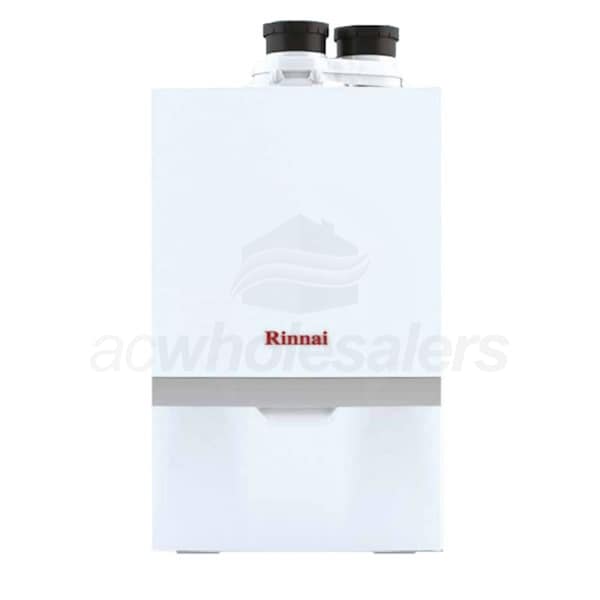

Rinnai 90,000 BTU 95% EF Combi Boiler Direct Vent

Model: M090CN Item Number: 94395
Rinnai M090CN
PREVIOUS
NEXT
Rinnai M090CN
Rinnai M090CN
Enlarge Image
Rinnai M090CN
Rinnai M090CN
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    77 Pounds Learn More
    77 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Line
    M Series
    Medium
    Hot Water
DOE Heating Capacity (BTU/Hr)
Select Attribute
DHW Production
Learn More
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Rinnai M090CN

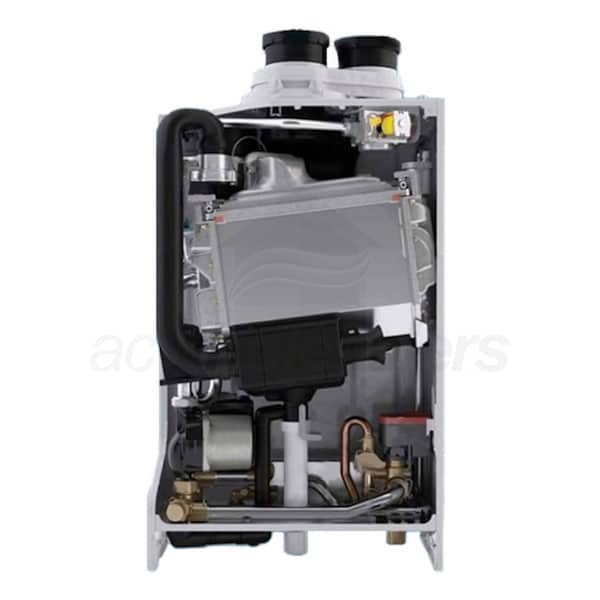

Rinnai M-Series combi boilers were designed with momentum in mind, focusing on key elements to allow for simple installation, operational performance and serviceability. Combining Rinnai's condensing boiler technology with an on-demand water heater, the M-Series combi boiler provides high efficiency home heating in a compact, efficient package. With a stainless steel heat exchanger, factory installed circulation pump and turbo fan, these boilers produce powerful and efficient heat without having to break the bank. Its lightweight and compact design, paired with an included mounting bracket, makes the Rinnai M-Series a quick and effective solution to your home heating needs.
  • High Efficiency Home Heating and Hot Water
  • Rinnai M-Series boilers boast an impressive 95.0% AFUE efficiency rating. A stainless steel heat exchanger promotes efficient heat transfer while the domestic hot water flow sensor helps modulate the boilers for increased performance.
  • Simple Installation
  • Its compact size and included mounting bracket allow the M-Series boiler to be installed easily and quickly. Flexible venting options and simplified setup parameters mean you'll have the boiler up and running in no time.
  • Easy-To-Use Interface
  • M-Series boilers feature a large display with a simple control interface. Simplified parameters and menu navigation allows for quick adjustments and service without the headache.
  • Product Includes
  • Liquid Propane Field Conversion Kit
  • Wall Mounting Bracket
  • Pressure Relief Valve
  • Condensate Collector Kit
  • Outdoor Reset Sensor
  • Vent Top with Integrated 3" PP Adapters
  • 3" PP to 3" PVC Adapter (Qty. 2)
  • 3" PVC to 2" PVC or PP Adapter (Qty. 2)
  • 3" x 5" Concentric Vent Adapter
  • NPT Adapters: 1" Supply/Return (Qty. 2), 3/4" Gas Supply (Qty. 1) and 3/4" DHW Adapters (Qty. 2)
  • Specifications
    View More

    Specifications

    General Information
    Product Line
    M Series
    Medium Learn More
    Medium
    Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
    Hot Water
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Combustion Type Learn More
    Combustion Type
    Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
    Condensing
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    DHW Production Learn More
    DHW Production
    DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
    Yes
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Modulating
    Connection Type
    NPT
    Mount Type
    Wall
    Minimum Altitude
    0 Feet
    Maximum Altitude
    10000 Feet
    Includes Pump
    Yes
    Assembly Type
    Packaged
    Gas Conversion Kit
    Included
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    95.0 %
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    90000 BTU
    Minimum Input Capacity
    17000 BTU
    DOE Heating Capacity Learn More
    DOE Heating Capacity
    Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
    84000 BTU
    Net I=B=R Capacity Learn More
    Net I=B=R Capacity
    I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
    73000 BTU
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    Yes
    Turndown Ratio
    3.8:1
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Flue Connection Size
    3 Inches
    Gas Connection Size
    3/4 Inch
    Cold Water Inlet
    3/4 Inch
    Hot Water Outlet
    3/4 Inch
    Supply Connection
    1 Inch
    Return Connection
    1 Inch
    Product Height
    28 Inches
    Product Width
    17 Inches
    Product Depth
    10 Inches
    Product Weight
    77 Pounds
    Shipping Weight
    87 Pounds
    Certifications
    Energy Star Listed
    Yes
    CSA Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    202100431
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
    Heat Exchanger Warranty
    12 Years
