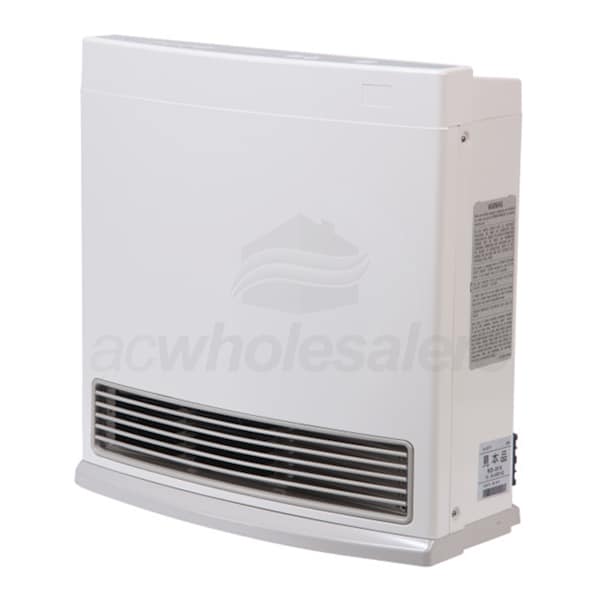

Rinnai 10,000 BTU 99.9% AFUE Vent-Free Fan Convector LP
Model: FC510PItem Number: 92629
Ask a Question
Enlarge Image
View All
Specification Highlights
Condition
New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
22.1 Pounds 22.1 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Product Category
Electric Heater
UPC
766156008139
View More
Nominal Input Capacity (BTU/h)
Fuel Type
Fuel TypeTo create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
+Share This Product
Features
Features
Overview for Rinnai FC510P
The Rinnai FC510P Vent-Free Fan Convector provides small space heating with efficiency and safety in mind. Using as little fuel as possible, the FC510P's convection fan evenly distributes warm air to hard to reach spaces. The FC510P eliminates the need for vents or ducts, places where the most heat is typically lost, making it one of the most efficient heating products on the market today. With integrated safety features including a cool-touch cabinet, power failure protection, and an oxygen depletion sensor, the FC510P provides home comfort with peace of mind.
Product Note
Vent-free heaters are prohibited to be sold or installed in the state of California.
Specifications
Specifications
Overview
Product Category
Electric Heater
UPC
766156008139
General Information
Type
Fan Convector
Product Category
Electric Heater
Fuel Type Fuel TypeTo create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Modulating/Staging Modulating/StagingStages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
Modulating
Connection Type
NPT
Mount Type
Floor
Installation Location
Indoor
Maximum Altitude
5200 Feet
Gas Conversion Kit
Not Available
Performance
AFUE AFUEAFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
98 %
Maximum Input Capacity Maximum Input CapacityThe Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
10000 BTU
Minimum Input Capacity
5600 BTU
Maximum Air Flow
98 CFM
Minimum Air Flow
67 CFM
Minimum Sound Level
28 dB
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
38 dB
Electrical Data
Voltage
120 Volts
Power Consumption
19 Watts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Product Height
19 19/48 Inches
Product Width
19 5/24 Inches
Product Depth
9 29/48 Inches
Product Weight
22.1 Pounds
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
