Rinnai I-SERIES Plus™ - Primary-Secondary Heating Kit - Solo

Model: 807000213 Item Number: 176044

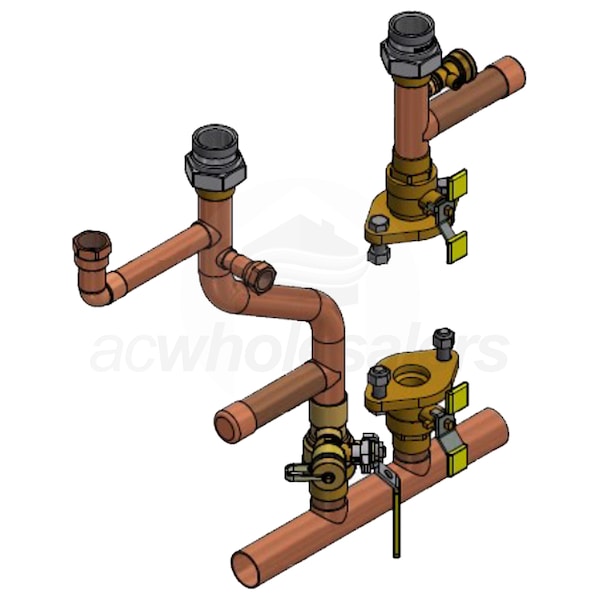

Rinnai 807000213
PREVIOUS
NEXT
Rinnai 807000213
Enlarge Image
Our Price: $332.00
In-Stock
Ships Monday, December 15th
Shipping to60601
Rinnai I-SERIES Plus™ - Primary-Secondary Heating Kit - Solo
Rinnai I-SERIES Plus™ - Primary-Secondary Heating Kit - Solo Model: 807000213 Item Number: 176044
$332.00
In-Stock
-
+
Features
Specifications
Reviews
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Mixing Valve Included
    No
Features
View More

Features

Overview for Rinnai 807000213

The Rinnai I-Series primary-secondary heating kit for combi boilers includes everything you need for a quick hot water boiler installation. Skip measuring, cutting and soldering while ensuring proper flow and system efficiency. Top quality components and neat joints result in a professional installation appearance.
  • Solo Boiler Compatibility
  • Specifically designed for seamless integration with Rinnai I-Series Solo Boiler models (i060S, i090S, i120S, i150S), ensuring optimal system performance.
  • Optimized for Hydronic Heating Systems
  • Primarily supports dedicated space heating applications, as characteristic of Solo (heat-only) boilers, without integrated domestic hot water production.
  • Hydraulic Separation for Heating Circuits
  • Provides critical hydraulic separation to manage complex heating circuits and multiple zones in Solo boiler installations.
  • Enhanced Heating System Efficiency
  • Contributes to improved overall heating system efficiency by facilitating proper flow management and hydraulic isolation in zoned heating setups.
  • Ease installation for Solo Systems
  • Factory-built for quick field installation and features a compact design, simplifying plumbing in Solo boiler heating systems.
  • Product Includes
  • The closely spaced tee is the core component, acting as a hydraulic separator to simplify system design and prevent issues like pump curve matching and complex flow calculations.
  • 1 in. Drain and Isolation Combination Valve: Included for both left and right sides of the connection.
  • 1-1/4 in. Supply/Return Manifold Connection.
  • 1 in. NPT Dielectric Union: Provided for both left and right sides.
  • 3/4 in. FNPT Pressure Relief Valve Connection: Note that the pressure relief valve itself is typically supplied with the boiler, not the kit.
  • 1/2 in. FNPT Pressure/Temperature Gauge Connection.
  • Specifications
    View More

    Specifications

    Performance
    Mixing Valve Included
    No
    Dimensions
    Product Height
    6 Inches
    Product Width
    22 Inches
    Product Depth
    22 Inches
    Shipping Weight
    7 Pounds
    Supply Diameter
    1.25 Inches
    Return Diameter
    1.25 Inches
    General Information
    UPC
    766156013058
