Rinnai I-SERIES Plus™ - Primary-Secondary Heating Kit - Combi

Model: 807000212 Item Number: 176043
Rinnai 807000212
PREVIOUS
NEXT
Rinnai 807000212
Enlarge Image
Our Price: $296.00
In-Stock
Ships Friday, December 5th
Shipping to60601
Rinnai I-SERIES Plus™ - Primary-Secondary Heating Kit - Combi
Rinnai I-SERIES Plus™ - Primary-Secondary Heating Kit - Combi Model: 807000212 Item Number: 176043
$296.00
In-Stock
-
+
Features
Specifications
Reviews
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Mixing Valve Included
    No
Features
View More

Features

Overview for Rinnai 807000212

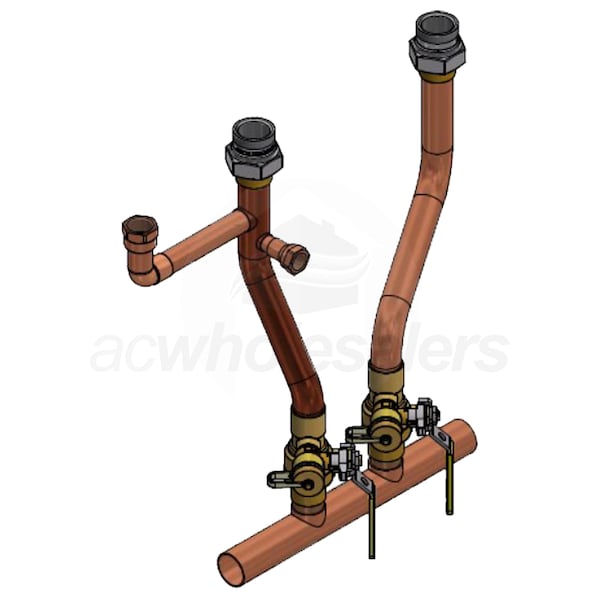

The Rinnai I-Series primary-secondary heating kit for combi boilers includes everything you need for a quick hot water boiler installation. Skip measuring, cutting and soldering while ensuring proper flow and system efficiency. Top quality components and neat joints result in a professional installation appearance.
  • Combi Boiler Compatibility
  • Specifically designed for seamless integration with Rinnai I-Series Combi Boiler models (i060C, i090C, i120C), ensuring optimal system performance.
  • Dedicated Domestic Hot Water Setup
  • Optimized for systems requiring simultaneous domestic hot water (DHW) and space heating, a key function of Combi boilers.
  • Hydraulic Separation for Combi Systems
  • Functions as a boiler accessory for hydraulic separation, effectively isolating the boiler loop from the central heating loop in Combi systems.
  • Efficient Heat Transfer
  • Aids in efficient heat transfer for both heating and hot water demands within the Combi boiler setup.
  • Compact Combi Design
  • Features a compact footprint and lightweight design (7.0 lb. / 3.2 kg) suitable for the space-saving nature of Combi boiler installations.
  • Product Includes
  • The closely spaced tee is the core component, acting as a hydraulic separator to simplify system design and prevent issues like pump curve matching and complex flow calculations.
  • 1 in. Drain and Isolation Combination Valve: Included for both left and right sides of the connection.
  • 1-1/4 in. Supply/Return Manifold Connection.
  • 1 in. NPT Dielectric Union: Provided for both left and right sides.
  • 3/4 in. FNPT Pressure Relief Valve Connection: Note that the pressure relief valve itself is typically supplied with the boiler, not the kit.
  • 1/2 in. FNPT Pressure/Temperature Gauge Connection.
  • Specifications
    View More

    Specifications

    Performance
    Mixing Valve Included
    No
    Dimensions
    Product Height
    22 Inches
    Product Width
    22 Inches
    Product Depth
    6 Inches
    Shipping Weight
    7 Pounds
    Supply Diameter
    1.25 Inches
    Return Diameter
    1.25 Inches
    General Information
    UPC
    766156013065
