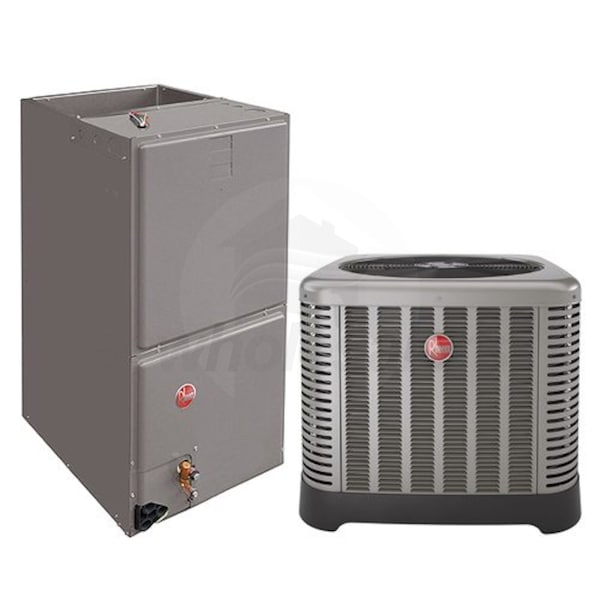

Rheem 2.5 Ton 16 SEER Air Conditioner Split System

Model: RH1T3617STANJA RA1630AJ1NA Item Number: 87363
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Rheem RH1T3617STANJA RA1630AJ1NA
PREVIOUS
NEXT
Rheem RH1T3617STANJA RA1630AJ1NA
Rheem RH1T3617STANJA RA1630AJ1NA
Rheem RH1T3617STANJA RA1630AJ1NA
Enlarge Image
Rheem RH1T3617STANJA RA1630AJ1NA
Rheem RH1T3617STANJA RA1630AJ1NA
Rheem RH1T3617STANJA RA1630AJ1NA
View All
Product Discontinued
Sorry, this product is no longer available.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    262 Pounds Learn More
    262 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Operating Mode
    Cooling
    Configuration
    Multi-Position
View More
Bundle Includes 2 items
  • product image
    (1) Rheem 2.5 Ton 16 SEER Air Conditioner Condenser (RA1630AJ1NA)
  • product image
    (1) Rheem 3 Ton Air Conditioner Air Handler (RH1T3617STANJA)
View Full Bundle
Features & Bundle Details
View More

Features & Bundle Details

Overview for Rheem RH1T3617STANJA RA1630AJ1NA

Rheem provides high-quality HVAC systems that will assist you in taking control of your home comfort. Not all castles were designed the same so we have provided a large selection to choose from. Our goal at is to provide high-quality HVAC systems that will give the customer satisfaction, by keeping everyone comfortable. The key to home comfort starts with Rheem.
Bundle Includes 2 items
  • product kit image
    Rheem 2.5 Ton 16 SEER Air Conditioner Condenser
    Model: RA1630AJ1NA
    Item Number: 84761
    Quantity: 1
  • product kit image
    Rheem 3 Ton Air Conditioner Air Handler
    Model: RH1T3617STANJA
    Item Number: 84765
    Quantity: 1
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
Bundle Overview
RA1630AJ1NA Specifications
RH1T3617STANJA Specifications
General Information
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Cooling
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling Capacity
30000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
14.5
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
12.2
Dimensions
Product Weight
262 Pounds
Shipping Weight
269 Pounds
Certifications
AHRI Certified
Yes
General Information
Type
Air Conditioner
Product Line
RA16
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Nominal Cooling Capacity
30000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
16
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74.3 dB
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
18 Amps
Recommended Breaker Size
30 Amps
Dimensions
Product Height
27 Inches
Product Width
33 3/4 Inches
Product Depth
33 3/4 Inches
Product Weight
152 Pounds
Shipping Weight
159 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
3/4 Inch
Certifications
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
10 Years
General Information
Refrigerant Type
R-410A
Motor Type
ECM
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Performance
Nominal Cooling Capacity
30000 BTU
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
4 Amps
Recommended Breaker Size
15 Amps
Dimensions
Product Height
17 1/2 Inches
Product Width
42 1/2 Inches
Product Weight
110 Pounds
Shipping Weight
110 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
7/8 Inch
Certifications
AHRI Certified
Yes
ISO Certified
Yes
