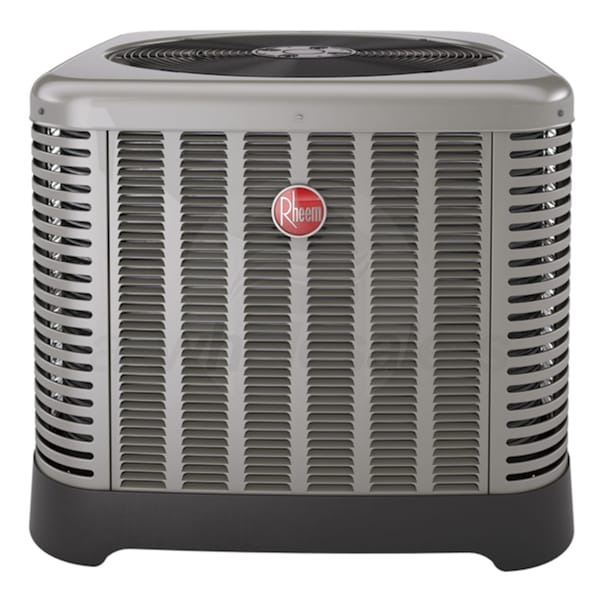

Rheem 4 Ton 16 SEER Air Conditioner Condenser

Model: RA1648AJ1NA Item Number: 92792
Rheem RA1648AJ1NA
PREVIOUS
NEXT
Rheem RA1648AJ1NA
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    205 Pounds Learn More
    205 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Air Conditioner
    Product Line
    RA16
Features
View More

Features

Overview for Rheem RA1648AJ1NA

Rheem provides high-quality HVAC systems that will assist you in taking control of your home comfort. In the time of heating or cooling your castle should be constantly cooled, heated, quiet, and comfortable. With Rheem efficient selection of residential air conditioners at your fingertips, you can keep discomfort out of sight, and out of mind. Your home is your castle. Keep it comfortable with Rheem.
Specifications
View More

Specifications

General Information
Type
Air Conditioner
Product Line
RA16
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
UPC
662021375606
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4 Tons
Nominal Cooling Capacity
48000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
16
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74.3 dB
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
25 Amps
Recommended Breaker Size
40 Amps
Dimensions
Product Height
45 Inches
Product Width
33 3/4 Inches
Product Depth
33 3/4 Inches
Product Weight
205 Pounds
Shipping Weight
215 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
7/8 Inch
Certifications
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
