Reznor 350,000 BTU Gas Fired Duct Furnace Natural Gas

Model: RP-350 Item Number: 46918

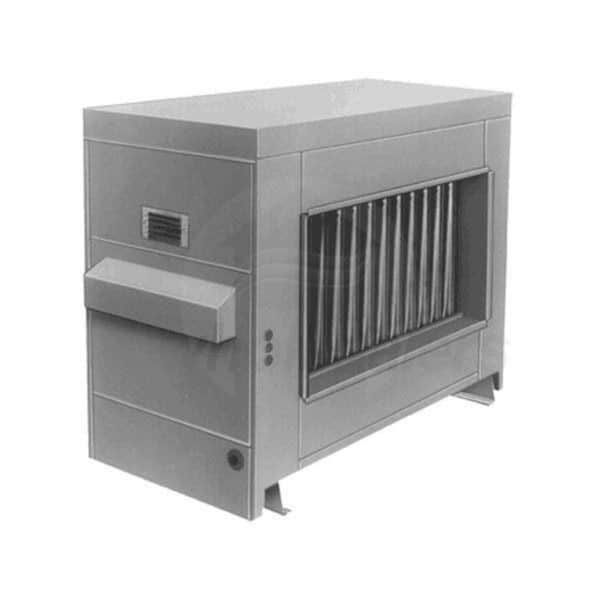

Reznor RP-350
Reznor RP-350
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    New Learn More
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    333 Pounds Learn More
    333 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Unit Heater
Input Capacity (BTU/h)
Select Attribute
Heat Exchanger Material
Select Attribute
View More


Overview for Reznor RP-350

Overview for Reznor RP-350

Reznor RP-350 350,000 BTU Gas Fired Duct Furnace Natural Gas.
  • Reznor RP-350 Features
  • Aluminized steel heat exchanger
  • Aluminized steel burners with stainless steel insert
  • 24 volt control voltage transformer
  • High limit safety cutout
  • Redundant single stage combination gas valve
  • Spark-ignited intermittent safety pilot
  • Power venter
  • Specifications
    View More


    Product Category
    Unit Heater
    General Information
    Product Line
    Product Category
    Unit Heater
    Heat Exchanger Material
    Aluminized Steel
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Power Vent
    Single Stage
    Blower Motor Type
    Mount Type
    Roof Mount
    Heating Capacity
    280000 BTU
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    350000 BTU
    Maximum Output Capacity
    280000 BTU
    High Fire Input
    350,000 BTU
    Thermal Efficiency
    80 %
    Maximum Air Flow
    5160 CFM
    Minimum Air Flow
    2865 CFM
    Electrical Data
    Flue Connection Size
    6 Inches
    Gas Connection Size
    3/4 Inch
    Product Height
    38 13/24 Inches
    Product Width
    55 11/16 Inches
    Product Depth
    26 Inches
    Product Weight
    333 Pounds
    Shipping Weight
    333 Pounds
    Country of Origin
    United States
    CSA Listed
    ANSI Certified
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Heat Exchanger Warranty
    10 Years
    View More
