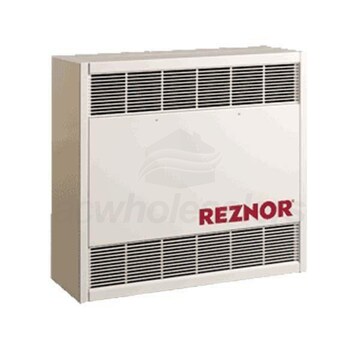

Reznor 34,144 BTU 10 kW Ceiling Mount Electric Heater 208V 3 Phase

Model: EMC-10-AK5-HG11 Item Number: 46217
Reznor EMC-10-AK5-HG11
PREVIOUS
NEXT
Reznor EMC-10-AK5-HG11
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    146 Pounds Learn More
    146 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Unit Heater
Features
View More

Features

Overview for Reznor EMC-10-AK5-HG11

Overview for Reznor EMC-10-AK5-HG11

Reznor EMC-10-AK5-HG11 34,144 BTU 10 kW Ceiling Mount Electric Heater 208V 3 Phase.
  • Reznor EMC-10-AK5-HG11 Features
  • 18 gauge, stainless steel housing
  • High-temperature control with automatic reset
  • Direct drive, variable speed fan
  • Tubular heating elements with fins
  • Epoxy/polyester powder paint
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Unit Heater
    General Information
    Type
    Standard
    Product Line
    EMC
    Product Category
    Unit Heater
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Electric
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal
    Mount Type
    Ceiling
    Performance
    Heating Capacity
    34144 BTU
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    34144 BTU
    Heating Capacity (kW)
    10 kW
    Maximum Air Flow
    500 CFM
    Minimum Air Flow
    400 CFM
    Electrical Data
    Voltage
    208 Volts
    Phase
    3
    Frequency
    60 Hz
    Current Draw
    27.79 Amps
    Dimensions
    Product Height
    26 Inches
    Product Width
    48 Inches
    Product Depth
    10 Inches
    Product Weight
    146 Pounds
    Shipping Weight
    146 Pounds
    Certifications
    Country of Origin
    United States
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
