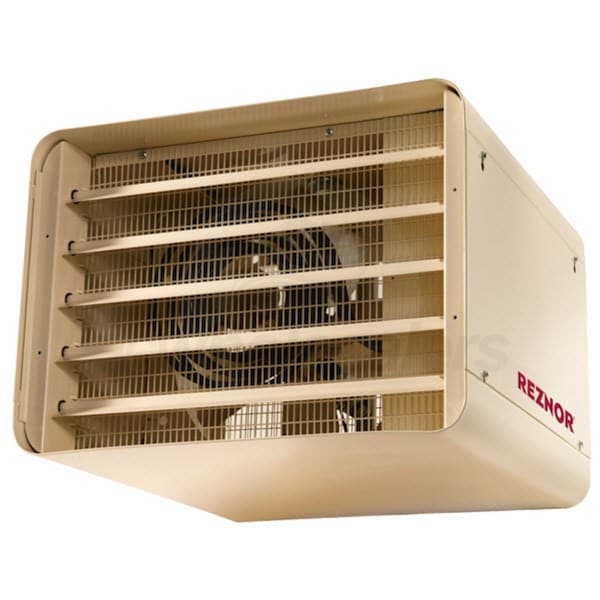

Reznor 51,216 BTU 15 kW Suspended Electric Heater 240V 3 Phase

Model: EGHB-15-AK6E Item Number: 46120
Reznor EGHB-15-AK6E
PREVIOUS
NEXT
Reznor EGHB-15-AK6E
Enlarge Image
Our Price: $2,797.00
synchrony card icon
$49 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Factory-Direct
Ships in 8-12 Weeks
Reznor 51,216 BTU 15 kW Suspended Electric Heater 240V 3 Phase
Reznor 51,216 BTU 15 kW Suspended Electric Heater 240V 3 Phase Model: EGHB-15-AK6E Item Number: 46120
$2,797.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    85 Pounds Learn More
    85 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Unit Heater
Voltage/Phase
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Reznor EGHB-15-AK6E

Reznor's EGHB is a heavy-duty electric heater designed for areas requiring a high level of air flow such as mines, commercial halls, stairwells, factories, warehouses or other high-bay installations. This unit heater may be mounted horizontally (wall or ceiling) using the factory supplied brackets or vertically using four threaded rods.
  • Product Features
  • Standard Epoxy/Polyester Powder Paint
  • Adjustable Louvers
  • High Limit Temperature Control
  • Thermally Protected Motor
  • Totally Enclosed Factor Lubricated Ball Bearing Motor
  • Product Note
    Reznor EGHB Series is not designed for residential use.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Unit Heater
    General Information
    Type
    Heavy Duty
    Product Line
    EGHB
    Product Category
    Unit Heater
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Electric
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Horizontal/Vertical
    Mount Type
    Suspended
    Performance
    Heating Capacity
    51216 BTU
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    51216 BTU
    Heating Capacity (kW)
    15 kW
    Maximum Air Flow
    1300 CFM
    Minimum Air Flow
    1300 CFM
    Electrical Data
    Voltage
    240 Volts
    Phase
    3
    Frequency
    60 Hz
    Current Draw
    36.12 Amps
    Dimensions
    Product Height
    17 1/2 Inches
    Product Width
    22 Inches
    Product Depth
    22 1/2 Inches
    Product Weight
    85 Pounds
    Certifications
    Country of Origin
    United States
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Product Q&A
    View More

    Product Q&A

    Be the first to ask a question.

    Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

    Manuals
