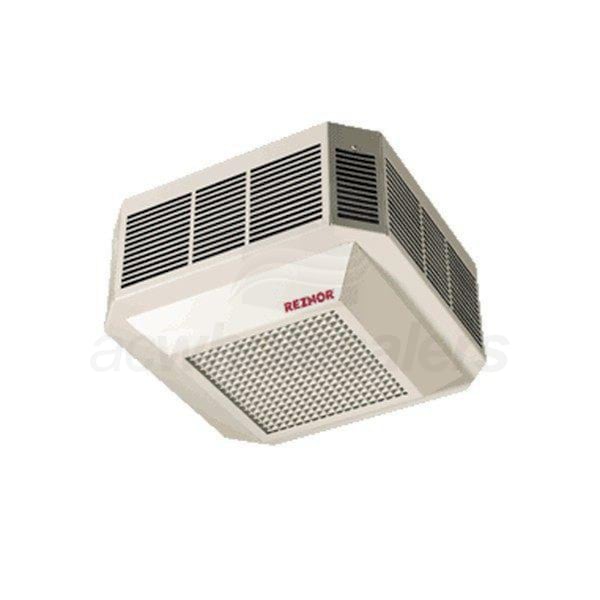

Reznor 25,608 BTU 7.5 kW Ceiling Mount Electric Heater 240V 1 Phase

Model: ECS-7-AK3E Item Number: 46059
Reznor ECS-7-AK3E
PREVIOUS
NEXT
Reznor ECS-7-AK3E
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    34 Pounds Learn More
    34 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Unit Heater
Features
View More

Features

Overview for Reznor ECS-7-AK3E

Overview for Reznor ECS-7-AK3E

Reznor ECS-7-AK3E 25,608 BTU 7.5 kW Ceiling Mount Electric Heater 240V 1 Phase.
  • Reznor ECS-7-AK3E Features
  • Three stainless steel tubular heating elements with aluminum fins
  • Epoxy/polyester powder paint
  • High-limit temperature control with automatic reset
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Unit Heater
    General Information
    Type
    Standard
    Product Line
    ECS
    Product Category
    Unit Heater
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Electric
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Vertical
    Mount Type
    Ceiling
    Performance
    Heating Capacity
    25608 BTU
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    25608 BTU
    Heating Capacity (kW)
    7.5 kW
    Maximum Air Flow
    700 CFM
    Minimum Air Flow
    700 CFM
    Electrical Data
    Voltage
    240 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    31.25 Amps
    Dimensions
    Product Height
    8 1/2 Inches
    Product Width
    22 5/16 Inches
    Product Depth
    22 5/16 Inches
    Product Weight
    34 Pounds
    Shipping Weight
    44 Pounds
    Certifications
    Country of Origin
    United States
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    1 Year
