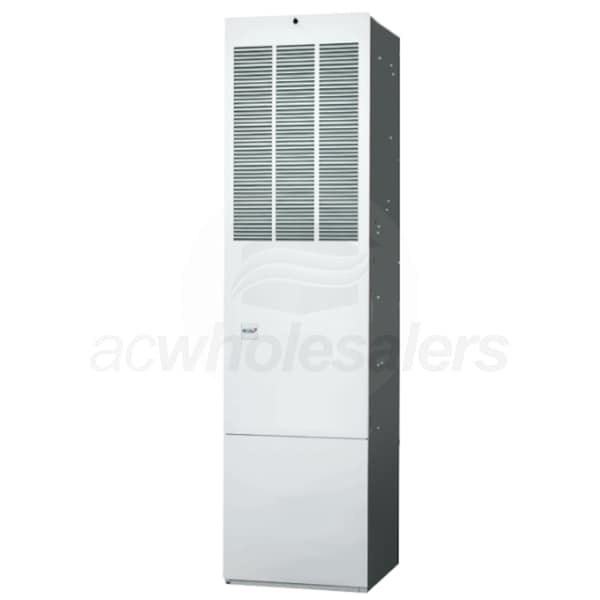

Revolv 95% AFUE 72000 BTU Downflow Multi Speed Mobile Home Gas Furnace

Model: MG2R-072FB Item Number: 101049
Revolv MG2R-072FB
PREVIOUS
NEXT
Revolv MG2R-072FB
Enlarge Image
Our Price: $2,734.00
synchrony card icon
$48 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Factory-Direct
Ships in 7-14 Business Days
Revolv 95% AFUE 72000 BTU Downflow Multi Speed Mobile Home Gas Furnace
Revolv 95% AFUE 72000 BTU Downflow Multi Speed Mobile Home Gas Furnace Model: MG2R-072FB Item Number: 101049
$2,734.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Furnace
    UPC
    663132389223
Heating Capacity (BTU/Hr)
Select Attribute
Includes Coil Cabinet
Select Attribute
Return Type
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Revolv MG2R-072FB

Revolv is dedicated to bringing efficient comfort to the manufactured and mobile home market. The MG2R is a downflow gas furnace capable of providing 68,000 BTU of heating at 95% AFUE. Designed for easy installation in a variety of manufactured and modular homes, the MG2R features a small footprint and is HUD-compliant. The MG2R includes an efficient ECM blower motor, allowing for powerful airflow at the fraction of the energy cost as a traditional PSC motor. Featuring a factory-installed coil box, the MG2R is ready to pair with an AC unit out of the box. With durable construction and a dependable warranty, the Revolv MG2R is a reliable solution for your manufactured home heating needs.
  • High Efficiency Heating
  • Revolv MG2R furnaces are designed to save you money. Sporting a 95% AFUE efficiency rating, Revolv's high efficiency line will provide heat while keeping money in your pocket.
  • ECM Motor
  • The MG2R includes a high efficiency, multi-speed ECM blower motor, granting powerful CFM ratings at the fraction of the energy costs of traditional PSC motors.
  • Category IV Venting
  • The MG2R's efficient technology allows for vertical or horizontal direct venting using approved non-metallic components for application flexibility.
  • Quick LP Conversion
  • An easy-access gas valve regulator, manifold and included LP orifices make propane conversion a breeze.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Furnace
    UPC
    663132389223
    General Information
    Type
    Gas Furnace
    Product Line
    MG2R
    Product Category
    Furnace
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Single Stage
    Blower Motor Type
    ECM Multi-Speed
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Downflow
    Gas Conversion Kit
    Included
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    95 %
    Heating BTU
    72000
    High Fire Input
    72000 BTU
    High Fire Output
    68400 BTU
    Maximum Air Flow
    1560 CFM
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    No
    Low NOx Emissions Learn More
    Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
    No
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    20 Amps
    Dimensions
    Flue Connection Size
    2 or 3 Inches
    Gas Connection Size
    1/2 Inch
    Cabinet Width
    19 3/4 Inches
    Product Height
    82 Inches
    Product Width
    19 3/4 Inches
    Product Depth
    23 3/4 Inches
    Shipping Weight
    175 Pounds
    Certifications
    AHRI Certified
    Yes
    AHRI Reference Number
    204600309
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
