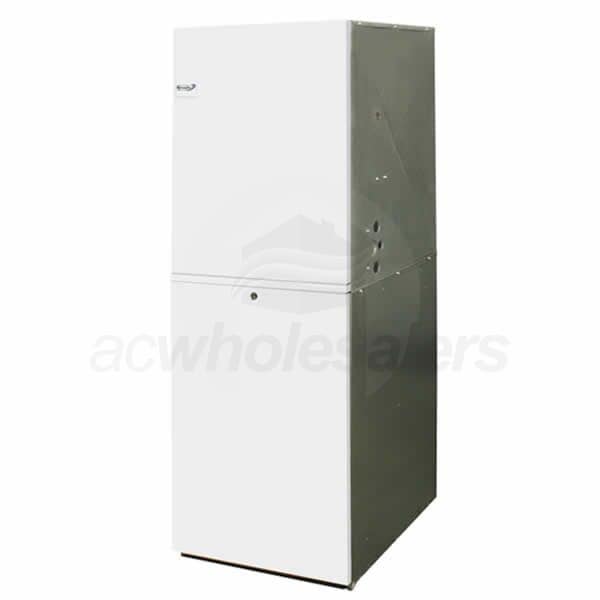

Revolv E7 - 53k BTU - Electric Furnace - Manufactured Home - 100% Efficiency - 15 kW - Upflow - Multi-Speed - Includes Coil Cabinet

Model: E7EU-015 Item Number: 101028
Revolv E7EU-015
PREVIOUS
NEXT
Revolv E7EU-015
Enlarge Image
Our Price: $1,192.00
synchrony card icon
$199 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 2-3 Weeks
Revolv E7 - 53k BTU - Electric Furnace - Manufactured Home - 100% Efficiency - 15 kW - Upflow - Multi-Speed - Includes Coil Cabinet
Revolv E7 - 53k BTU - Electric Furnace - Manufactured Home - 100% Efficiency - 15 kW - Upflow - Multi-Speed - Includes Coil Cabinet Model: E7EU-015 Item Number: 101028
$1,192.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Furnace
    UPC
    663132372744
Heating Capacity (BTU/Hr)
Select Attribute
Orientation
Learn More
Orientation
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Select Attribute
Includes Coil Cabinet
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Revolv E7EU-015

Revolv is dedicated to bringing efficient comfort to the manufactured and mobile home market. The E7EU-015 is a upflow electric furnace capable of providing 53,000 BTU of heating at 100% efficiency. Designed for easy installation in a variety of manufactured and modular homes, it enjoys a 0" required clearance to combustibles at the rear and sides. Service clearance of only 6" are required at the front of the unit, if installed in a closet or 18" in an alcove. This model includes a built-in coil cabinet. If you're struggling to effectively and safely heat your manufactured home, the E7EU-015 is a solution that you can believe in.
  • Multi-Speed ECM Motor
  • The E7EU energy efficient blower motor uses the lowest speed it can to deliver precise temperature control for your home while keeping utility bills to a minimum.
  • Nichrome Heating Elements
  • Revolv electric furnaces feature nichrome heating elements, designed to provide long lasting, efficient heating without breaking the bank.
  • Built in Coil Cabinet
  • The Revolv E7EU models come with a coil cabinet built into the unit. This means they are ready for installation without the need to buy additional parts.
  • Multiple Cooling Choices
  • E7EU models can be paired with either air conditioners or heat pumps and can handle up to a maximum of 4 tons of cooling.
  • High Quality, Low Maintenance
  • Features such as sealed bearings on the motors, reliable controllers, and a built-in circuit breakers means these units are made to last and provide uninterrupted comfort for years.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Furnace
    UPC
    663132372744
    General Information
    Type
    Electric Furnace
    Product Line
    E7EU
    Product Category
    Furnace
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Electric
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Single Stage
    Blower Motor Type
    ECM Multi-Speed
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Upflow
    Performance
    Heating BTU
    53000
    Electric Heat Capacity
    15.0 kW
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    83 Amps
    Recommended Breaker Size
    90 Amps
    Dimensions
    Product Height
    60 5/8 Inches
    Product Width
    20 Inches
    Product Depth
    24 1/2 Inches
    Shipping Weight
    112 Pounds
