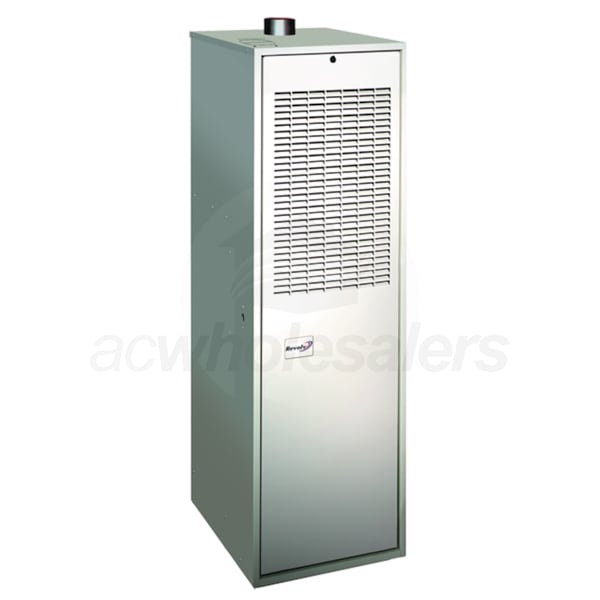

Revolv CFM3 - 70k BTU - Gas Replacement Furnace - Manufactured Home - 80% AFUE - Single-Stage - Downflow - Multi-Speed - No Coil Cabinet

Model: CMF370PG Item Number: 101012
Revolv CMF370PG
PREVIOUS
NEXT
Revolv CMF370PG
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Type
    Gas Furnace
    Product Line
    CMF3
    Fuel Type
    Natural Gas
Features
View More

Features

Overview for Revolv CMF370PG

Revolv is dedicated to bringing efficient comfort to the manufactured and mobile home market. The CMF3 is a replacement gas furnace for manufactured homes. The CMF3 features a vintage 18" cabinet width to accommodate tight replacement installations, which is often found in older manufactured homes. With a redesigned three-speed blower, the CMF3 allows for efficient and quiet operation. With durable construction and a dependable warranty, the Revolv CMF3 is a reliable solution for your manufactured home heating needs.
  • Vintage Width Cabinet
  • Most older manufactured homes accommodate furnaces with an 18" cabinet width. The CMF3 is designed to fit such applications.
  • Tilt-Out Door
  • The CMF3 includes a tilt-out door with a plunger-style door switch for service convenience and more louvers for improved airflow.
  • Application Accessories
  • Several application accessories are available to allow for convenient adaptation to an original installation, saving time and money.
  • Specifications
    View More

    Specifications

    General Information
    Type
    Gas Furnace
    Product Line
    CMF3
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Vent Type Learn More
    Vent Type
    Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
    Direct Vent
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Single Stage
    Blower Motor Type
    PSC Multi-Speed
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Downflow
    Gas Conversion Kit
    Included
    UPC
    663132389490
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    80 %
    Heating BTU
    70000
    High Fire Input
    70000 BTU
    High Fire Output
    56000 BTU
    Maximum Air Flow
    900 CFM
    Ultra Low NOx Emissions Learn More
    Ultra Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx.
    No
    Low NOx Emissions Learn More
    Low NOx Emissions
    NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx.
    No
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    15 Amps
    Dimensions
    Gas Connection Size
    1/2 Inch
    Cabinet Width
    18 Inches
    Product Height
    57 Inches
    Product Width
    18 Inches
    Product Depth
    24 1/4 Inches
    Shipping Weight
    158 Pounds
    Certifications
    AHRI Certified
    Yes
    AHRI Reference Number
    202458567
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    2 Years
