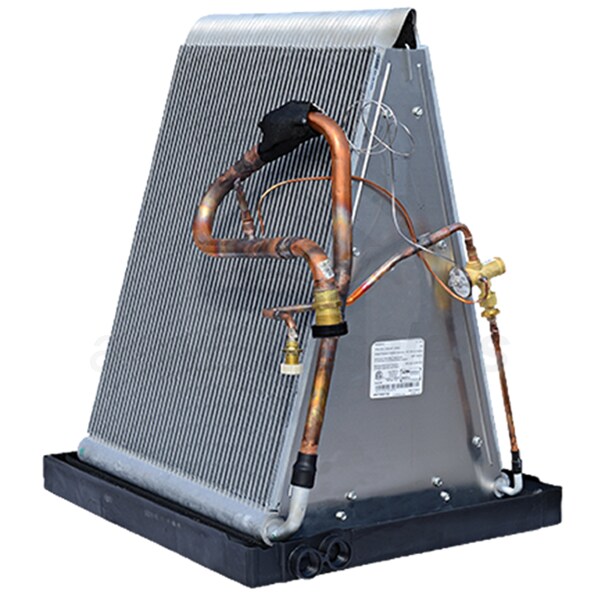

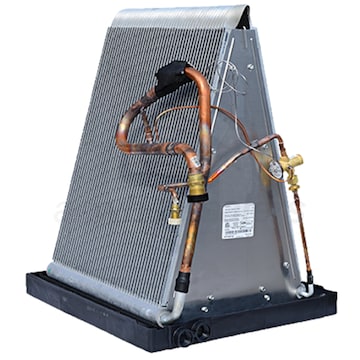

Revolv 2 Ton Upflow/Downflow 14 SEER Air Conditioner Uncased Coil

Model: C8QAMX24U-B Item Number: 77587
Revolv C8QAMX24U-B
PREVIOUS
NEXT
Revolv C8QAMX24U-B
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Evaporator Coil
    UPC
    663132311484
Features
View More

Features

Overview for Revolv C8QAMX24U-B

No need to waste any more time calculating the correct refrigerant charge in your HVAC system. The AccuCharge® 14 SEER Series coils are designed to work with AccuCharge® condensers that have a factory precise refrigerant charge and FitRight® fittings that provide an easy installation. The C8QAMX24U-B is compatible with not only air conditioners, but heat pumps as well. AccuCharge® coils are designed to be the coil of choice for new and existing downflow mobile home HVAC systems
  • AccuCharge® with FitRight® Fittings
  • All AccuCharge® units come with a factory precise refrigerant charge and FitRight® fittings that provide an easy installation. The combination of the two are engineered for superior efficiency and reliability.
  • Factory Installed TXV Valve
  • The AccuCharge® coils come installed with a thermal expansion valve (TXV) that helps control the amount of refrigerant flow into the evaporator.
  • Mounted TXV Sensor Bulb
  • The TXV sensor bulb is what senses how much refrigerant to flow through the coil. In the AccuCharge® coils, it is mounted properly on the suction line for precise readings.
  • Failure Prevention
  • AccuCharge® coils have features to prevent premature failure of your coil. It has a built-in strainer to prevent debris from entering the coil. It also has a dry-type pan so that it doesn't hold standing water.
  • Installation Materials Included
  • The C8QAMX24U-B comes with a kit including a drain hose, fittings, and furnace cover plates for gas and oil furnaces.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Evaporator Coil
    UPC
    663132311484
    General Information
    Type
    Evaporator Coil
    Product Category
    Evaporator Coil
    Refrigerant Type
    R-410A
    Casing
    Uncased
    Style
    A Coil
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Downflow
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.0 Tons
    Cooling BTU
    24000
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    18 Inches
    Product Width
    18 1/8 Inches
    Product Depth
    19 1/2 Inches
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
