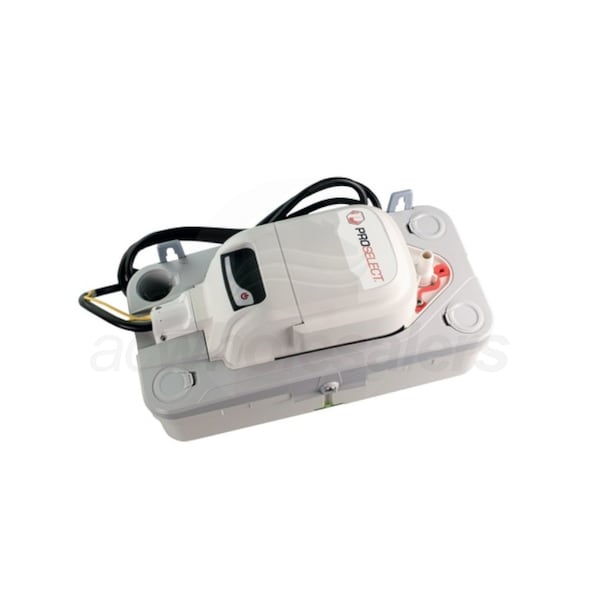

ProSelect Condensate Pump 115V 20' Lift w/ Safety Switch Up to 192 Ton

Model: PSCPV220WS Item Number: 109552
ProSelect PSCPV220WS
PREVIOUS
NEXT
ProSelect PSCPV220WS
Enlarge Image
Our Price: $76.00
In-Stock
Ships Monday, April 1st
Shipping to60601
ProSelect Condensate Pump 115V 20' Lift w/ Safety Switch Up to 192 Ton
ProSelect Condensate Pump 115V 20' Lift w/ Safety Switch Up to 192 Ton Model: PSCPV220WS Item Number: 109552
$76.00
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    4.1 Pounds Learn More
    4.1 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Accessories
Lift (Feet)
Select Attribute
Accessory
Select Attribute
Voltage (Volts)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for ProSelect PSCPV220WS

When it comes to air conditioner and furnace installation, condensate removal needs to be considered for proper unit functionality. The ProSelect Condensate Pump is a powerful, yet compact pump that doesn't compromise on reservoir capacity. The pump features a unique trap and filter that minimizes biofilm buildup, while a fan assisted motor cooling system ensures efficient condensate removal without a hitch. The pump's reservoir can be easily removed for routine maintenance, even while the pump remains fixed in place. The pump can also be wall or floor mounted for installation flexibility. Includes a hi-level safety switch.
  • Flexible Installation
  • With four inlet positions and the ability to be mounted on the floor or wall, the ProSelect Condensate Pump offers flexible installation options.
  • Stays Clean
  • An integrated comb filter is easy to clean without having to separate parts during maintenance, while tapered inlets ensure the drain hose is not pushed to the bottom of the tank - minimizing biofilm buildup.
  • Quick Release Reservoir
  • The ProSelect Condensate Pump features a quick release reservoir, enabling the tank to be removed without having to dismount the whole pump.
  • Locking Clip
  • An outlet adapter locking clip ensures the outlet cannot be accidentally removed during use.
  • Low Profile
  • Even with such a shallow overall height, the condensate pump is still able to contain 0.45 gallons of water.
  • Product Includes
  • Hi-Level Safety Switch
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Mini Split Accessories
    General Information
    Type
    Condensate Pump
    Product Category
    Mini Split Accessories
    Water Reservoir
    11/24 Gallon
    Performance
    Maximum Input Capacity Learn More
    Maximum Input Capacity
    The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
    2304000 BTU
    Maximum Head
    20 Feet
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    44 dB
    Condensate Removal Rate
    135 GPH
    Electrical Data
    Current Draw
    1.6 Amps
    Dimensions
    Product Height
    5 13/48 Inches
    Product Width
    11 11/48 Inches
    Product Depth
    5 2/3 Inches
    Product Weight
    4.1 Pounds
    Certifications
    CSA Listed
    Yes
    UL Listed
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    1 Year
