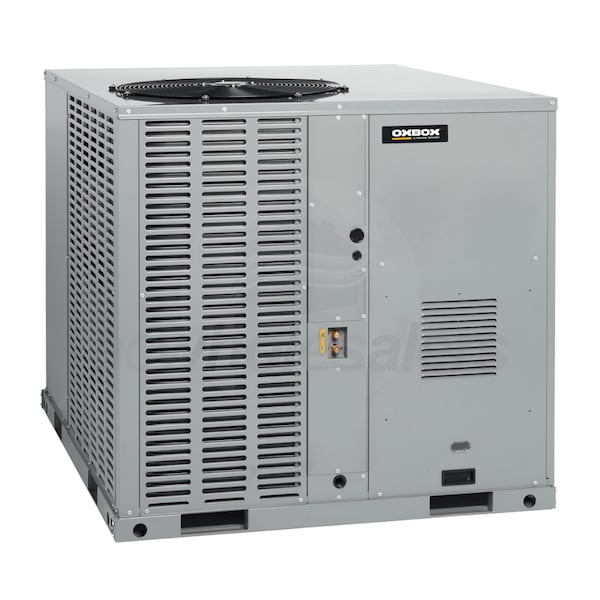

Oxbox 4 Ton 14.0 SEER 90,000 BTU Gas/Electric Package Unit

Model: J4PG4048A1090B Item Number: 110404
Oxbox J4PG4048A1090B
PREVIOUS
NEXT
Oxbox J4PG4048A1090B
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    573 Pounds Learn More
    573 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Gas/Electric Packaged Unit
    Product Line
    J4PG4
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Oxbox J4PG4048A1090B

Oxbox packaged central air systems consolidate your heating and cooling equipment within a single durable steel cabinet. This gas/electric central air system includes a condenser to cool your home in warm months and a gas-powered furnace component for cold seasons. The unit features an aluminized steel tubular heat exchanger and multi-speed circulation blower for powerful home heating and cooling without breaking the bank on energy costs. The unit also features a bottom or side air return for flexible installation options.

Simple Package

The Oxbox gas/electric unit features a condenser coil for cooling and gas-powered furnace for heating - all in one compact package.

Anti-Rust Cabinet

Each Oxbox packaged unit goes through a 500-hour salt spray test to ensure its durability.

Internal Safeguards

The Oxbox packaged unit features several internal safeguards that protect the compressor against high pressure, low pressure and coil temperatures.

High Efficiency Compressor

The included compressor features highly efficient and quiet operation.


Product Note
  • In order to maintain the warranty, product must be installed by a licensed contractor. Proof of installation by a licensed contractor is required.
  • Specifications
    View More

    Specifications

    General Information
    Type
    Gas/Electric Packaged Unit
    Product Line
    J4PG4
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Fuel Type Learn More
    Fuel Type
    To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
    Natural Gas
    Modulating/Staging Learn More
    Modulating/Staging
    Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control.
    Single Stage
    Refrigerant Type
    R-410A
    Blower Motor Speed
    Multi-Speed
    Motor Type
    PSC
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Downflow/Horizontal
    Installation Location
    Outdoor
    Gas Conversion Kit
    Included
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Single Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    AFUE Learn More
    AFUE
    AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace.
    81 %
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    4.0 Tons
    Cooling Capacity
    47000 BTU
    Heating Capacity
    90000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    14.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    11.0
    Maximum Air Flow
    1876 CFM
    Minimum Air Flow
    1163 CFM
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    63 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    36.3 Amps
    Recommended Breaker Size
    60 Amps
    Dimensions
    Product Height
    44 5/8 Inches
    Product Width
    57 23/48 Inches
    Product Depth
    41 7/16 Inches
    Product Weight
    573 Pounds
    Shipping Height
    42 1/2 Inches
    Shipping Width
    58 Inches
    Shipping Length
    45 1/4 Inches
    Shipping Weight
    593 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    203503053
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Compressor Warranty
    10 Years
