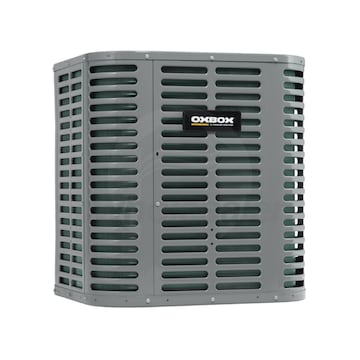

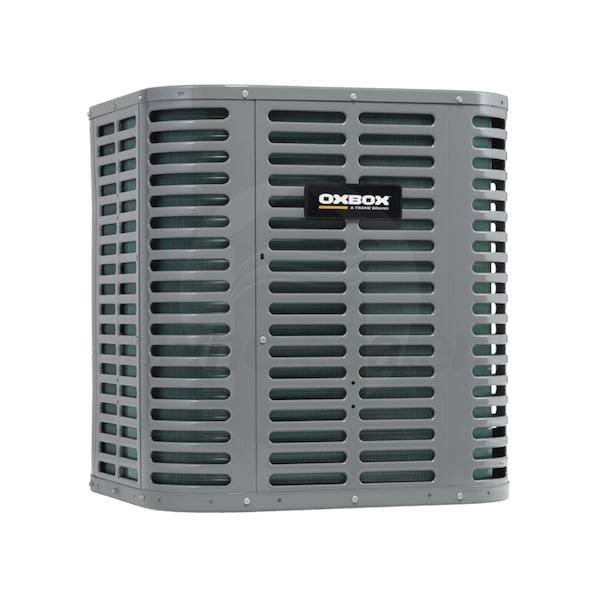

Oxbox J4HP6 - 2.5 Ton - Heat Pump - 16.0 Nominal SEER - Single-Stage - R-410A Refrigerant

Model: J4HP6030A1000AA Item Number: 110377
Oxbox J4HP6030A1000AA
Oxbox J4HP6030A1000AA
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    New Learn More
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    157 Pounds Learn More
    157 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Heat Pump
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
View More


Overview for Oxbox J4HP6030A1000AA

Ideal for mild climates, the Oxbox heat pump operates as an air conditioner during warm weather and provides heat when temperatures drop. The heat pump\\\'s compact size and small footprint are ideal for homeowners with limited yard space, while its painted galvanized steel cabinet resists rust and stands up to harsh weather.
  • Affordable Quality
  • Oxbox heat pumps offer powerful and dependable cooling and heating at an affordable price.
  • Small Footprint
  • With its compact size, the Oxbox heat pump is perfect for homes that have limited yard space.
  • Durable Cabinet
  • Oxbox heat pumps include a painted, galvanized steel cabinet to resist rust and stand up to weather.
  • Quiet Operation
  • With a maximum sound level of 76 dB, you'll barely notice your heat pump is running.
  • Low Voltage Control
  • The Oxbox heat pump features 24V low-voltage control, providing added safety to installation and operation.
  • Product Note
    In order to maintain the warranty, product must be installed by a licensed contractor. Proof of installation by a licensed contractor is required. NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
    View More


    Product Category
    Heat Pump
    General Information
    Product Line
    Product Category
    Heat Pump
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Refrigerant Type
    Installation Location
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Single Stage
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Capacity Learn More
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.5 Tons
    Cooling BTU
    Cooling Capacity
    30000 BTU
    SEER Learn More
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    74 dB
    Electrical Data
    208/230 Volts
    60 Hz
    Minimum Circuit Ampacity
    16.5 Amps
    Recommended Breaker Size
    25 Amps
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    24 15/16 Inches
    Product Width
    28 Inches
    Product Depth
    28 Inches
    Product Weight
    157 Pounds
    Shipping Height
    31 1/2 Inches
    Shipping Width
    29 1/24 Inches
    Shipping Length
    29 1/24 Inches
    Shipping Weight
    187 Pounds
    ETL Listed
    AHRI Certified
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Compressor Warranty
    10 Years
    View More
